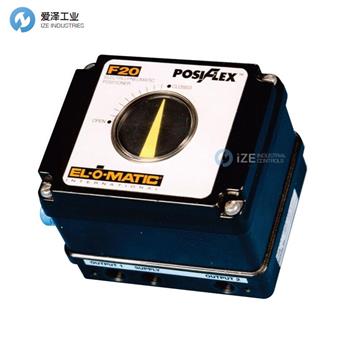

EL-O-MATIC定位器F20 IP65 M20x1,5 11629產品規格
Hysteresis | 0.60% |
Linearity | 1.00% |
Air Flow | 210 Nl/min (6 bar) |
Air Consumption | 10 Nl/min (6 bar) |
Min. volume actuator | 0.1 Nl |
Temperature | -20° / +80° C. |
Enclosure | IP 65 |
Mounting | VDI/VDE 3845-2 |
Pressure Media | |
Air quality | Non-lubricated instrument air, filtered at 25 micron. |
Air Supply | 1.4 - 8.6 bar. |
Air Entry | G 1/4". |
Electrical data | |
- Standard | 2 wire: 4 - 20 mA (~ 8VDC). |
- Adjustable (for split range) | 4-12mA / 12-20 mA |
Resistance (at 20 mA) | 350 Ohm |
Electrical Entry | M20 x 1.5 |
Materials: | |
Housing | Aluminium Alloy |
Enclosure | IP65 / NEMA4 |
Finish | Polyester powder coated |
EL-O-MATIC定位器F20系列介紹
描述
PosiFlex F20系列電氣/氣動定位器適用于雙作用或單作用的旋轉或直線型執行器。該裝置采用模擬電子比較原理，并利用4-20mA模擬輸入信號，實現執行器的精確定位。
PosiFlex電氣/氣動定位器是一款真正的兩線制儀表，使用4-20mA信號既作為控制信號，也作為電子電源。電子模塊允許通過控制板上的微調電位器對零點、量程和靈敏度等控制特性進行重新設定。
提供多種集成控制選項，包括：
壓力表組件
4-20mA位置變送器
機械式SPDT限位開關
2線制（NAMUR）或3線制（PNP）接近限位開關
反饋電位器
VDI/VDE 3845-2 (NAMUR) 安裝套件
低溫版本（-50°C至+80°C）
主要特點與優勢
無故障、模塊化設計 —— 采用可模塊化、可堆疊的組件，結構緊湊，提供高度精確和多功能的控制能力。
4-20mA電子控制 —— 方便進行常用控制參數的定位和調節，操作簡便。
應用靈活性 —— 既可用于雙作用或單作用的旋轉型，也可用于直線型執行器。
堅固耐用且防腐蝕的鋁制外殼 —— 采用雙層聚氨酯涂層和“O”型圈密封部件，符合NEMA 4和IP65防護要求。
Description
The PosiFlex F20 Series Electro/Pneumatic Positioner is suitable for either double or ingle acting rotary or linear actuators. The unit operates using the principle of analog electronic comparison and uses the analog 4-20 rnA input signal to obtain an accurate position of the actuator.
The PosiFlex Electro/Pneumatic Positioner is a true 2-wire instrument which uses the 4-20 rnA signal to provide both the controlling signal and electronics power supply. An electronic module allows zero, range, and sensitivity control characteristics to be reset using trim pots on the control card.
A comprehensive range of integrated control options is available including:
Pressure gauge block
4-20mA position transmitter
Mechanical SPDT limit switches
2- Wire (NAMUR) or 3- Wire (PNP) proximity limit switches,
feedback potentiometers.
VDI/VDE 3845-2 (NAMUR ) mounting kits
Low temperature version -50°C to +80°C
Key features and benefits
Trouble-Free, Modular Design - incorporates modular and stack-able components in a compact package to provide highly accurate, versatile control capability.
4-20mA Electronic Control - allows the most frequently used control adjustments to be easily located and reset.
Application Flexibility - can be used with double or single acting rotary or linear actuators.
Durable, Corrosion Resistant Aluminum Housing - features a two part polyurethane finish and "0" ring sealed components for compliance with NEMA 4 and IP65 requirements.
EL-O-MATIC定位器其他常用型號：
EL-O-MATIC F20 IP65 M20x1,5 11629
EL-O-MATIC F10
EL-O-MATIC F20
EL-O-MATIC G1
EL-O-MATIC G2
EL-O-MATIC PTF20
EL-O-MATIC PT2
EL-O-MATIC S2
EL-O-MATIC PNP
EL-O-MATIC IS2
EL-O-MATIC Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EL-O-MATIC定位器F20 IP65 M20x1,5 11629 的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
