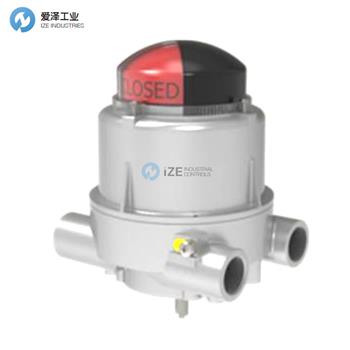

CECOGEN限位開關盒CFIB-2-MA-35H-C-0-0技術參數
HOUSING MODEL | CFIB Low cover version - n°2 ?” npt.f conduit entries - Position display in 3D. |
n° SENSORS | 2 N° 2 sensors - Each with n°3 terminals when combined with SPST/SPDT contact or n° 6 if with DPDT contact |
SENSOR TYPE | MA Hybrid Magnetic GO switch |
SENSOR MODEL | 35H |
HOUSING CERTIFICATION | C Atex certified (CESI 10 ATEX 019X): |
HOUSING MATERIAL | 0 Aluminium; (STANDARD) |
POSITION VISUAL DISPLAY | 0 Position visual display 3D (0°– 90°) - Color: red (closed) - green (open) - Material: polycarbonate; (STANDARD) |
CECOGEN限位開關盒CF系列介紹
在外殼設計過程中，主要目標是打造一款能夠滿足石油化工、化工、煉油、油氣、電力以及水處理等領域最嚴苛應用需求的產品。因此，特別重視材料的選擇以及對材料本身的特殊處理，以實現對上述應用中常見的具有侵蝕性的環境的最高防護水平。AllGlobTop Logo系列CF外殼采用鋁合金制造，銅含量（≤0.1%），結合特殊的鉻酸鹽轉化涂層處理和聚酯噴漆工藝，確保在工業環境中對腐蝕性和侵蝕性介質具有出色的抗護能力。
對于特別嚴苛的環境應用，例如極低溫或極高腐蝕性的環境，提供采用316L不銹鋼制造、經過特殊電拋光處理的外殼解決方案。
During the design of the housing, our primary goal was to create a product capable of satisfying the most severe applications for petrochemical, chemical, refinery, oil & gas, power generation and water treatment. Therefore, particular care has been given to the choice of the material as well as to special the treatments to the material it self to obtain the highest level of protection against aggressive ambience typically present in the above applications. AllGlobTop logo housings series CF are manufactured with aluminium alloy with a very low copper content ( <= 0.1%) which, combined with the special chromate conversion coatings treatment and polyester painting process, guarantees an excellent protection against corrosive and aggressive agents typically present in the industrial environments. For applications in particularly severe environments, such as very low temperature and/or very high corrosion, we have a solution of 316L SST made housings with a special treatment of electropolishing.
CECOGEN限位開關盒HF系列其他常用型號：
CECOGEN CFIB-2-MA-35H-C-0-0
CECOGEN CFIB1MAIP35 -TEXS1X
CECOGEN CFIB-2-ME-V3-ET-S
CECOGEN CFIA-2-MA-7H-ET-S-00
CECOGEN limit switches box NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CECOGEN限位開關盒CFIB-2-MA-35H-C-0-0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CECOGEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
