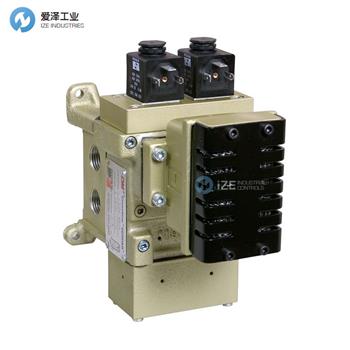

ROSS閥DM2DDB43A21技術參數
Port Size (In) | 1/2" |
Port Thread | BSPP |
Voltage | 24 VDC |
Status Indicator | Pressure Switch |
Reset Type | Solenoid |
Cv (In-Out) | 2.8 |
Port Size (Out) | 1/2" |
Port Size (Exhaust) | Built in Silencer |
Cv (Exhaust) | 6.7 |
Mounting Type | Base Mounted |
Inlet Side | Dual Ported Left/Right |
Monitor Type | Pneumatic |
Override | Without Override |
Input to Main Solenoid | Independent |
Switches for External Monitoring | N/A |
Solenoid Connection | DIN |
Status Indicator Connection | DIN |
ROSS閥DM2? D系列介紹
DM2? D 系列雙閥是一款獲得專利的 3/2 常閉閥（帶中間鎖定位置），其特點是主閥桿上帶有 SERPAR? 橫流通道、錐閥和滑閥。這種布置賦予了閥門流量特性和集成監控功能，并帶有總記憶功能。該閥門提供動態監控和動態記憶功能。
動態監控意味著所有監控組件在每個閥門循環中都會改變狀態。如果閥芯異步循環，閥門將排出下游空氣并鎖定，從而禁止進一步操作。
監控系統中的動態記憶功能表明，當閥門鎖定時，無論空氣或電氣狀態如何變化，閥門都將保留故障信息。DM2? 系統只能通過定義的操作/程序復位，并且不會自行復位（關閉和打開閥門），也不會在切斷并重新通入進氣時復位。這種自動復位會向操作員隱藏潛在危險。
The DM2? Series D double valve is a patented 3/2 normally closed valve (with an intermediate, lockout position) distinguished by SERPAR? Crossflow passages with poppet and spool valving on the main valve stems. This arrangement provides the valve’s outstanding flow characteristics and an integrated monitoring capability with total memory. The valve provides dynamic monitoring and dynamic memory.
Dynamic Monitoring means that all monitoring components change state on every valve cycle. Should the valve elements cycle asynchronously, the valve will exhaust downstream air and lock-out, prohibiting further operation.
Dynamic Memorywithina monitoring system indicates that when a valve lock-out occurs, the valve will retain the fault information regardless of air or electrical changes. The DM2? system can only be reset by a defined operation/procedure, and will not self-reset (turning the valve off and on) or reset when inlet air supply is removed and re-applied. Such automatic resetting would conceal potential hazards from the operator.
ROSS閥DM2D系列其他常用型號：
ROSS DM2DDB43A21
ROSS DM2DNB43A21
ROSS DM2DDB20A21
ROSS DM2DDB21A21
ROSS DM2DDB42A21
ROSS DM2DDA54A21
ROSS DM2DDA55A21
ROSS DM2DDA66A21
ROSS DM2DDA67A21
ROSS DM2DDA88A21
ROSS DM2DDB43B21
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥DM2DDB43A21的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
