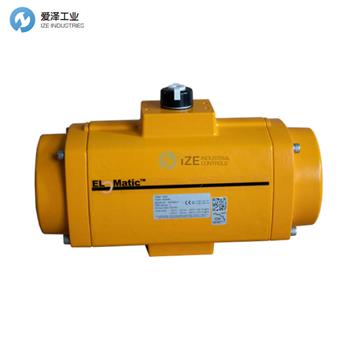

EL-O-MATIC執行器FS0100.NM10CWALL.YD19SNA.00XX技術參數
Code | FS0100.NM10CWALL.YD19SNA.00XX |
Type | [FS] Spring-Return |
Size | [0100] Size 0100 |
Rotation angle | [N] 90° rotation angle |
Threads | [M] Metric ISO 5211 |
Spring Set | [10] Spring Set 10 |
Rotation direction | [CW] Spring to Close/Clock Wise |
Pinion Material | [AL] High Grade Aluminum, Hard anodized |
Valve Interface | [LY] Large interface with center plate (DIN3337) |
Valve Stem Connection | [D19] |
Temperature Range | [S] Standard: -20 °C to +80 °C (-4 °F to +176 °F) |
Visual Indication Code | [N] No Visual Indication |
Finish | [A] Standard coating (EL-O-Matic Yellow |
Internal code 1 | [00] Standard |
Miscellaneous options | [XX] Standard |
EL-O-MATIC執行器F系列介紹
EL-O-Matic F 系列是齒條齒輪執行器，有 13 種尺寸，包括彈簧復位或雙作用型號。 該執行器的“安裝即忘記”設計為各種直角回轉閥門應用提供了性能。 EL-O-matic F 系列采用粉末涂層，并配有特殊的高耐腐蝕鋁制小齒輪設計和不銹鋼緊固件，從而實現了持久耐用的執行器設計。
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.

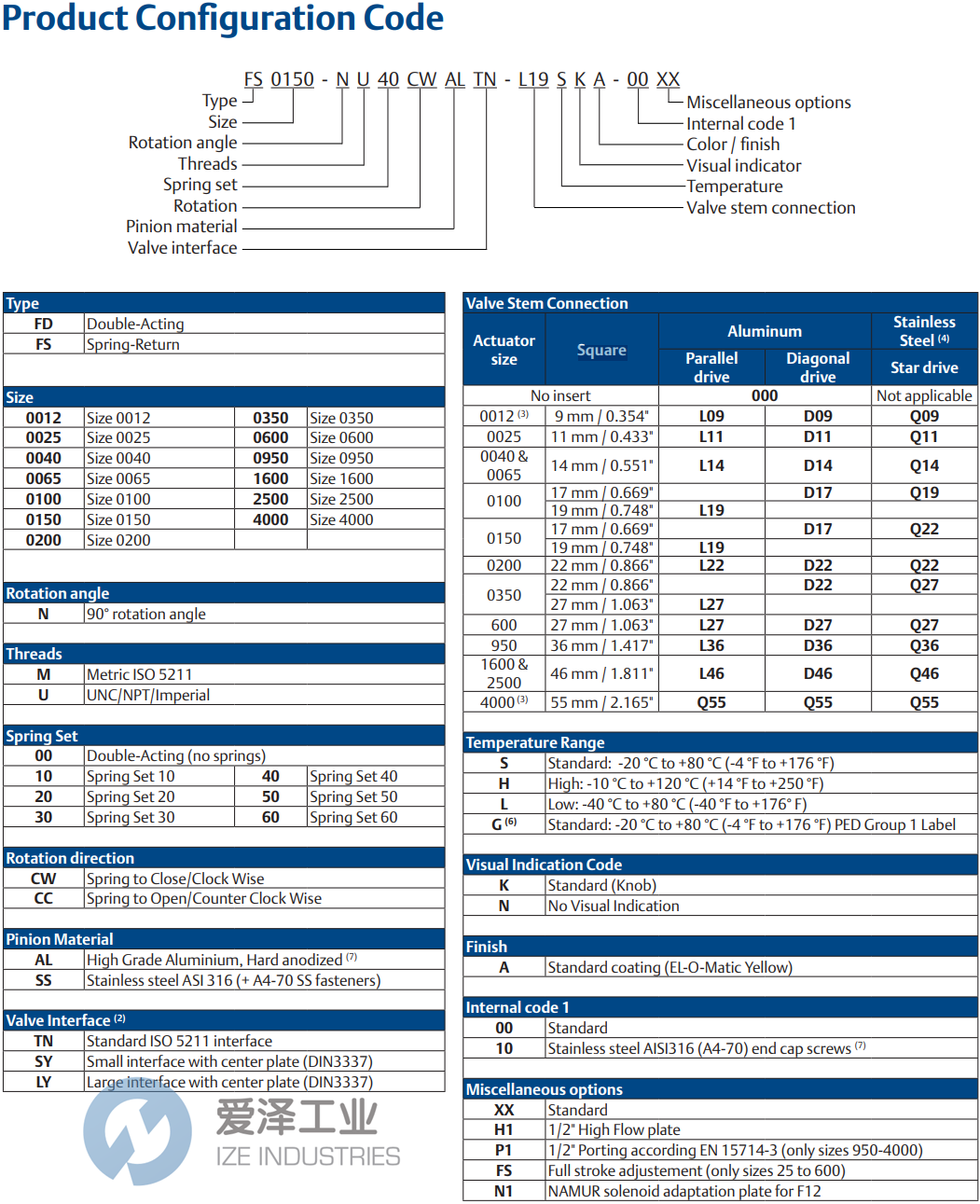

EL-O-MATIC執行器F系列選型
EL-O-MATIC執行器F系列其他常用型號：
EL-O-MATIC FS0100.NM10CWALL.YD19SNA.00XX
EL-O-MATIC FS0100.NM40CWALS.YD14SNA.00XX
EL-O-MATIC FS0100.NU40CWALTN-L19LKA-00XX
EL-O-MATIC FS0100.NM50CWALL.YD17SNA.00XX
EL-O-MATIC FS0100.NM30CWALL.YD17SNA.00XX
EL-O-MATIC Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EL-O-MATIC執行器FS0100.NM10CWALL.YD19SNA.00XX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EL-O-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
EL-O-MATIC執行器F系列FS0100.NM10CWALL.YD19SNA.00XX技術參數及選型
