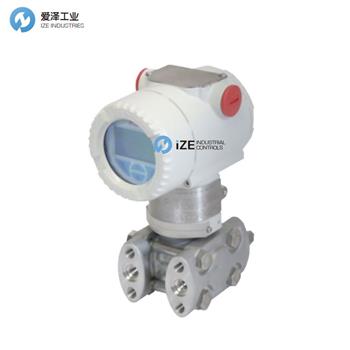

ABB變送器266HSH.P.S.T.A.8.E2.LS.B7.S2.I2規格描述
266HSH |
P Sensor Span Limits / Sensor Overpressure / Base Accuracy - 24 and 2400 kPa (0.24 and 24 bar, 3.5 and 348 psi) / 21MPa (210 bar, 3045 psi) / Base accuracy 0.06% |
S Diaphragm Material / Fill Fluid - AISI 316L ss / Silicone oil (NACE) |
T Process Connection Material / Type - AISI 316L ss / 1/2 in. -14 NPT male (NACE) |
A Housing Material / Electrical Connection - Aluminium alloy (Barrel version) / 1/2 in. - 14 NPT |
8 Output - HART and 4 to 20 mA Safety, certified to IEC 61508 (Options requested by “Additional ordering code”） |
E2 Hazardous Area Certification - ATEX Explosion Proof Ex d LS Integral LCD - Integrated digital LCD display (Only selectable with output code 7) |
B7 Mounting Bracket Shape / Material - For horizontal or vertical mounting on pipe and wall / AISI 316L ss |
S2 Surge / Transient Protector - Surge / Transient protector |
I2 Additional Tag Plate - Tag and certification stainless steel plates and laser printing of tag |
ABB變送器其他常見型號:
ABB 266HSH.P.S.T.A.8.E2.LS.B7.S2.I2
ABB 266HSH.H.S.S.B.2.B.1.V1.E1.L1.B1.I2.C1.H3
ABB 266HSH.H.S.K.D.2.A.1.V5.L1.B2.I2
ABB 266HSH.Q.S.S.A.1.A.7/266MSH
ABB 266HSH.H.S.S.B.2.A.1.V1.E6.L5.B2.T3.I2.C1.H3
ABB 266HSH.HSSBRA1V1E7L1TB
ABB 266HSH.HSSB2B1V1E1L1B1I2C1H3
ABB 266HSH.E.S.B.A.7.LS
ABB 266HSH.HSKD2A1V5L1B2I2
ABB 266HSH.QSSA1A7/266MSH
ABB Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB變送器266HSH.P.S.T.A.8.E2.LS.B7.S2.I2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
