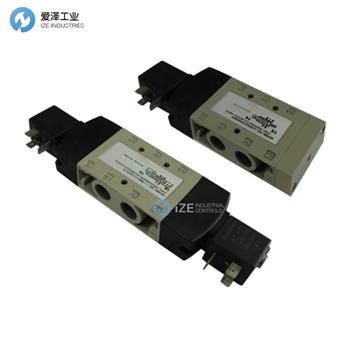

ASCO電磁閥YA1BA4522G00040技術規格
Specifications | |
Valve Actuation | Solenoid air pilot & air operated |
Body Material | Aluminum alloy |
Media | Air & inter gas lubricated or unlubricated; vacuum |
Port size | 1/8”, 1/4” |
Port type | NPTF |
Function | 5/2 single, 5/2 double, 5/3 - Closed Center, 5/3 - Open Center, 5/3 - Pressure Center |
Flow | Cv 1.0 |
Voltage | 12-24-110VDC, 24-110-230VAC 50-60Hz |
Operating Pressure | Vacuum to 10bar |
Power Consumption | 2.5 W /2.5VA |
Duty Cycle | 1 |
IP class | IP65 |
ASCO電磁閥YA系列介紹
ASCO系列YA氣閥在緊湊的設計中提供了快速和高流量能力。它們可選用電磁先導或氣動先導操作。YA的纖薄設計（22mm寬機身）非常適合在線安裝，同時也可安裝在2到12站的一體式擠壓式歧管上。12站的YA歧管寬度僅為272mm。YA系列閥門適用于汽車、瓶裝、輪胎制造、壓機房和金屬沖壓應用。
特點
在惡劣環境中表現出高度可重復和可靠的性能
適合高循環率的機器應用
配備標準環氧樹脂封裝線圈的電磁操作器
堅固的結構提供行業領先的生命周期性能
通過Numar接口進行執行機構控制
提供H級線圈作為選項
The ASCO Series YA air valves offer speed and high flow capacity in a compact design. They are available with solenoid pilot or air pilot actuation. The YA′s slim design (22mm body width) is ideal for inline mounting, while it may also be mounted on one-piece extruded manifolds from 2 to 12 stations. A 12-station YA manifold is only 272mm wide. The YA Series valves are suitable for automotive, bottling, tire manufacturing, and press room and metal stamping applications.
Features
Highly repeatable and reliable performance in harsh environments
Ideal for high cycle-rate machine applications
Solenoid Operator with standard epoxy encapsulated coil
Robust construction provides industry-leading life cycle performance
Numar interface for actuator control
H class coil as option
ASCO電磁閥YA系列其他常用型號：
ASCO YA1BA4522G00040 AC220V
ASCO YA1BA4521N00000
ASCO YA1BA4522G00020
ASCO YA1BA4522G00030
ASCO YA1BA4522G00040
ASCO YA1BA4522N00040
ASCO YA1BA4524G00060
ASCO YA1BA4524G00061
ASCO YA1BA4524G18D61
ASCO YA1BA4524N00061
ASCO YA1BA4524N12A63
ASCO YA1BB4522G00020
ASCO YA1BB4522G00030
ASCO YA1BB4522G00040
ASCO YA1BB4522N00040
ASCO YA1BB4524G00060
ASCO YA1BB4524G00061
ASCO YA1BB5522G00020
ASCO YA1BB5522G00030
ASCO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥YA1BA4522G00040 AC220V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
ASCO電磁閥YA1BA4522G00040 AC220V介紹
