CLEAR-COM通訊耳機CC300-X4技術參數
Technical Specifications | |
Headphone | |
Type: | Closed-back |
Driver: | 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil |
Frequency Response: | 40Hz v- 20kHz |
Microphone | |
Element: | Dynamic |
Polar Pattern: | Hyper-cardioid |
Frequency Response: | 300Hz - 20kHz |
Sensitivity | |
Microphone Open Circuit Sensitivity: | -61dB ±3.5dB (0dB=1V/1Pa, at 1kHz , typical) |
Headphone Sensitivity | |
CC-300: | 102dB ±3dB (SPL) /1mW at 1kHz typical) |
CC-400: | 98dB ±3dB (SPL) /1mW at 1kHz typical) |
Impedance | |
CC-300: | 400? ±30%; at 1kHz typical |
CC-400: | 200? ±30%; at 1kHz typical |
Microphone: | 200? ±30%; at 1kHz typical |
Connector | |
Cable: | 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR |
Dimensions | |
Packaging for CC-300 and CC-400: | 4.8 x 13 x 10.43in (WxHxD) (122 x 330 x 265mm) |
Weight | |
CC-300: | 8.6oz (245g) without 8-pin cable assembly and M3*18mm SCREW |
CC-400: | 11.1oz (315g) without 8-pin cable assembly and M3*18mm SCREW |

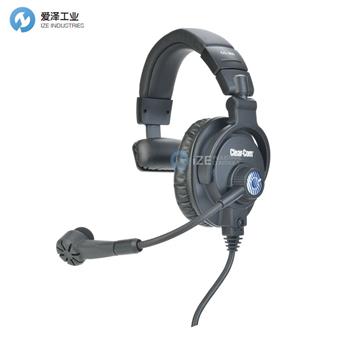

CLEAR-COM通訊耳機CC-300系列介紹
詳細信息
高品質動態心形指向麥克風
高環境噪聲抑制耳機
麥克風：頻率響應范圍 300Hz - 20kHz
耳機：頻率響應范圍 40Hz - 20kHz
采用柔軟皮革套墊，舒適包覆
靈活的鵝頸麥克風位置調節
微偏轉360度麥克風旋轉，可以實現開啟/關閉麥克風靜音開關
堅固耐用的設計
商品編號
CC-300-X4：單耳 4針母頭XLR
CC-300-X5：單耳 5針
CC-300-X6：單耳 6針公頭XLR（平衡麥克風）
CC-300-X7：單耳 7針母頭XLR
CC-300-Y5：單耳 5針母頭XLR
CC-300-B6：單耳無連接頭
Details
High quality dynamic cardioid microphone
High ambient-noise attenuation headphones
Microphone: 300Hz - 20kHz frequency response
Headphone: 40Hz - 20kHz frequency response
Cushioned with soft leatherette padding
Flexible gooseneck microphone positioning
300-degrees boom mic rotation for ON/OFF mic-mute switch
Rugged design
Item Code
CC-300-X4: Single-ear 4-pin Female XLR
CC-300-X5: Single-ear 5-pin
Male XLR CC-300-X6: Single-ear 6-pin male XLR (balanced mic)
CC-300-X7: Single-ear 7-pin Female XLR
CC-300-Y5: Single-ear 5-pin Female XLR
CC-300-B6: Single-ear no connector
