ASCON通訊轉換器DY系列技術參數
FEATURES | |
FUNCTIONAL | DY |
Manager functions | -- |
Gateway functions | Binding (data transfer) |
WebSCADA functions | Instruments template |
Communications ports | RS232 standard ( for instrument configuration only) |
GENERAL | |
Power supply | 24Vac (-25...+12%), 24Vdc (-15...+25%) (50/60Hz) |
Power consumption | 4VA max. |
Dimensions / Weight | 22.5 x 99 mm, depth 114.5 mm / 200 g approx. |
Mounting | On OMEGA DIN A rail |
Connections | PWS and COM: 0.08… 1.5 mm2 (AWG28-AWG16) |
Protection degree | IP20 (terminal block) |
Operating / storage temperature | 0... 50°C (32… 122°F) / -20… 70°C (-4… 158°F) |
Operating humidity | 5… 95% RH% without condensation |
Conformity | CE, EN61010-1 (IEC1010-1) |

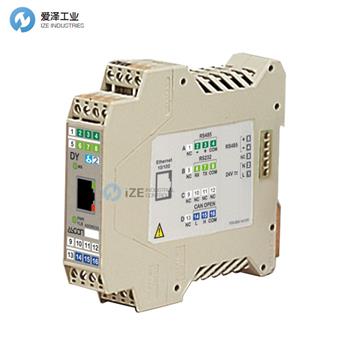

ASCON通訊轉換器DY系列介紹
從 RS485 CANopen、Ethernet Modbus TCP 到 Modbus RTU 的網關轉換模塊到 Modbus RTU RS485 協議：
DY 5031：CANopen/Modbus RTU RS485 網關
DY 5220：Modbus TCP/Modbus RTU RS485 以太網網關
用于電源和串行通信的總線可以直接連接到 deltadue 模塊。
Gateway from RS485 CANopen, Ethernet Modbus TCP to Modbus RTU
Conversion modules to the Modbus RTU RS485 protocol
DY 5031: CANopen/Modbus RTU RS485 gateway
DY 5220: Modbus TCP/Modbus RTU RS485 Ethernet gateway
Bus for power supply and serial communication directly connectable to deltadue modules
ASCON通訊轉換器DY系列其他常用型號：
ASCON DY50B20800
ASCON DY50310
ASCON DY51210
ASCON DY52200
ASCON DY50318
ASCON DY51218
ASCON DY52208
ASCON Communication converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCON通訊轉換器DY50B20800的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
ASCON通訊轉換器DY系列DY50B20800技術參數及選型
