HILSCHER網關NT100系列技術參數
Technical Data | |
Operating temperature | ±0 ... +60 °C |
Power Supply | +18 … +30 V / 130 mA @ +24 V |
Dimensions (L x W x H) | 100 x 52 x 70 mm (without connector) |
Weight | 150 g |
Diagnostic Interface | Mini-USB |
Displays | SYS, COM, LINK, Rx/Tx, protocol specific |
Configuration | SYCON.net, Windows? 7 or higher |
Connector | Mini-COMBICON 2-pin |
Mounting | DIN-Rail, DIN EN 60715 |
Certification | CE Sign, UL 508 |
Emission | Noise Immunity | CISPR 11 Class A | EN 61131-2:2003 |
HILSCHER網關NT100系列介紹
netTAP 100是用于復雜轉換的協議轉換器，支持2端口實時以太網到串行、現場總線到現場總線、實時以太網到現場總線和實時以太網到以太網的轉換。它支持任意組合的從屬和主控功能。獲得許可后，主功能不受限制。
存儲卡插槽允許用戶將固件和配置數據保存在可移動卡上。如果發生故障，只需將存儲卡從舊的netTAP 100移到備用設備上，即可在幾秒鐘內使設備恢復正常運行。
除了標準協議，netTAP 100還支持使用基于Lua的腳本語言netSCRIPT創建串行協議。交付中包含一個功能齊全的開發環境。它允許對任何專有串行協議以及在轉換為其他現場協議期間的I/O數據預處理進行舒適和快速的編程。

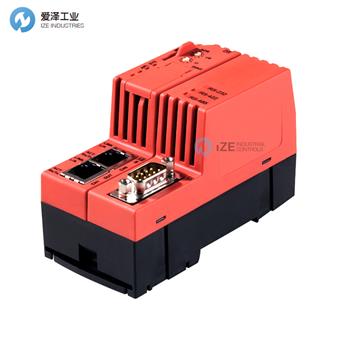

netTAP 100 is the protocol converter for sophisticated conversions and supports 2-port Real-Time Ethernet to serial, Fieldbus to Fieldbus, Real-Time Ethernet to Fieldbus and Real-Time Ethernet to Ethernet conversions. It supports slave and master functionality in any combination. Master functionality is unrestricted when licensed.
A memory card slot allows the user to save firmware and configuration data on a removable card. In case of failure all that is necessary to bring the plant back on line within seconds is to move the memory card from the old netTAP 100 onto a spare unit.
Apart from standard protocols, netTAP 100 supports the creation of serial protocols with the Lua-based scripting language netSCRIPT. A full featured development environment is included within the delivery. It allows the comfortable and rapid programming of any proprietary serial protocol as well as the I/O data pre-processing during the conversion into the other field protocol.
HILSCHER網關NT100系列其他常用型號：
HILSCHER NT100-RE-EN
HILSCHER NT100-RE-CC
HILSCHER NT100-RE-CO
HILSCHER NT100-RE-DP
HILSCHER NT100-RE-DN
HILSCHER NT100-RE-RS
HILSCHER NT100-DP-CC
HILSCHER NT100-DP-CO
HILSCHER NT100-DP-DN
HILSCHER NT100-DP-DP
HILSCHER NT100-DP-RS
HILSCHER NT100-CO-CC
HILSCHER NT100-CO-CO
HILSCHER Gateway NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HILSCHER網關NT100-RE-DP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HILSCHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
HILSCHER網關NT100系列NT100-RE-DP技術參數及介紹
