WITT阻火器E460-3 135-094技術參數
Model | E460-3 |
max. working pressure [bar] | Oxygen (O),Compressed air (D) 20.0 |
Material | Brass Elastomer |
Weight [g] | 107 |
Inlet hose [mm] / thread according to EN 560 | G 3/8 RH |
Outlet hose [mm] / thread according to EN 560 | G 3/8 RH |
Order-No. | 135-094 |
WITT阻火器E460-3系列介紹
回火抑制器,通過 DIN EN ISO 5175-1 認證,帶有用于割炬或切割機的螺紋連接
用于單個氣缸
安全元件:阻火器 [FA]、止回閥 [NV]
每個避雷器都經過 100% 測試
BAM認證
65 毫米高,107 克
最大乙炔 9 m3/h(自由流出)
最大燃料氣體 82 m3/h(自由流出)
最大氧氣 119 m3/h(自由流出)

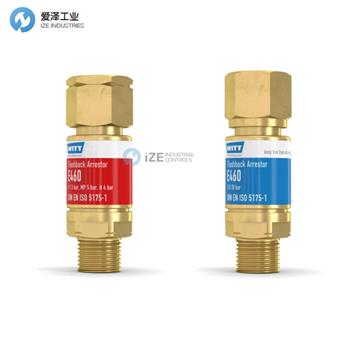

Flashback arrestor, certified to DIN EN ISO 5175-1, with thread connection for torch or cutting machine
for individual cylinders
safety elements: flame arrestor [FA], non-return valve [NV]
every arrestor 100% tested
BAM certified
65 mm height, 107 g
acetylene max. 9 m3/h (free flow-off)
fuel gases max. 82 m3/h (free flow-off)
oxygen max. 119 m3/h (free flow-off)

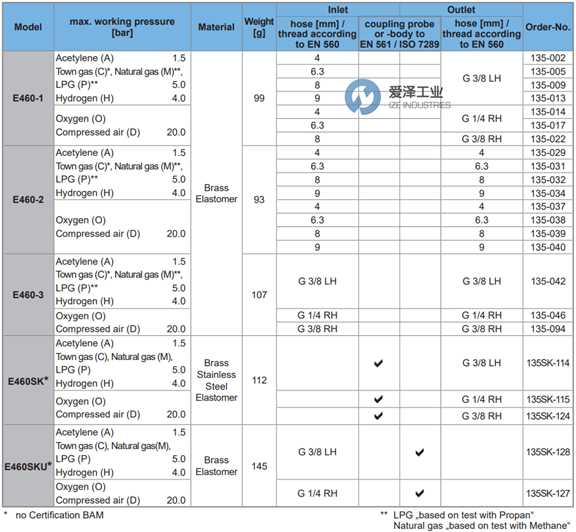

WITT阻火器E460系列選型
WITT阻火器E460系列其他常用型號:
WITT E460-2 135-031
WITT E460-2 135-032
WITT E460-2 135-034
WITT E460-2 135-037
WITT E460-2 135-038
WITT E460-2 135-039
WITT E460-2 135-040
WITT E460-3 135-042
WITT E460-3 135-046
WITT E460-3 135-094
WITT Flashback Arrestor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WITT阻火器E460-3 135-094的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for WITT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
WITT阻火器E460系列E460-3 135-094技術參數及選型
