DURGO安全閥4156 DN15 Set 4ba產品參數
Model | SV56 (4156) |
Article Number | SV-56-G15/G20-xx-xx |
Connection | G15 / G20 |
Connection type | Threaded external/external (ISO-G) |
Opening pressure | 0.5-20.0 bar |
Set Pressure | Optional within interval |
Temperature range | -30°C to +125°C |
Type | Progressive, soft sealing |
Material | Brass / FKM sealing |
Function | Overflow/bypass valve |
Height | 190 mm |
Net weight | 1.2 kg |
DURGO安全閥4156 DN15 Set 4ba產品介紹
溢流閥 Durgo SV56 (4156) DN15 開啟壓力 0.5-20.0 bar (0.05-2.0 MPa)
Durgo 溢流閥型號 SV56 (4156) 可漸進式操作，適用于帶壓系統中的冷水、熱水、空氣、油類和其他介質。閥體、噴嘴和錐體由抗鋅蝕黃銅制成，密封材料為氟化橡膠（FPM/FKM）或EPDM。Durgo 溢流閥 SV56 提供多種開啟壓力范圍，范圍為 0.5-20.0 bar (0.05-2.0 MPa)。

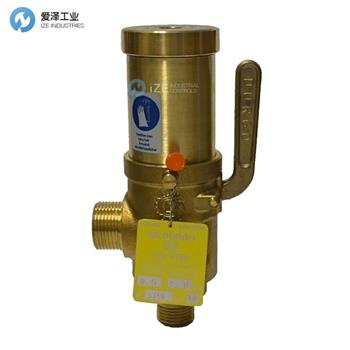

Overflow Valve Durgo SV56 (4156) DN15 Opening pressure 0.5-20.0 bar (0.05-2.0 MPa)
Durgo Overflow Valve type SV56 (4156) operates progressively and can be used in pressurised systems with cold and hot water, air, oils and other media. The valve housing, nipple and cone are in dezincification resistant brass with seal material of fluorinated rubber (FPM/FKM) or EPDM. Durgo Overflow Valves SV56 are available with various opening pressure ranges within the interval 0.5-20.0 bar (0.05-2.0 MPa).
DURGO安全閥其他常見型號：
DURGO 4156 DN15 Set 4ba
DURGO SV55 (4155)
DURGO SV65 (4165)
DURGO SV77 (GT-77)
DURGO SV56 (4156)
DURGO SV66 (4166)
DURGO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DURGO安全閥4156 DN15 Set 4ba的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DURGO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
