KIEPE錯位開關HES系列技術參數
TECHNICALDATA | |
Designation | MisalignmentSwitchTypeHES |
Typeofactuation | Bidirectional |
Complieswith | DINEN60947-5-1 |
Suitedfor | ControlunitsinaccordancewithDINEN60204-1 |
Mechanics | |
Enclosure | Aluminum |
Coating | PU2K-paintyellow,RAL1004 |
Actuatinglever | Stainlesssteel;?50mm,ball-bearedroller |
Mounting | 2xM8 |
Deflectionofrollerlever(max.) | +/-75° |
Weight | 2.2kg |
Electricalsystem | |
Switchingsystem(max.) | 4SPDT(snapaction) |
Switchingrange | 2x12,5°,adjustable+/-10° |
Cableentry (includedinscopeofdelivery) | Threadedholes2xM25x1,5witheach |
Utilizationcategory | AC-15:230V;1.5A |
Connectioncrosssection(max.) | 2,5mm2 |
Protectiveconductorconnection | ProtectionClassI/protectiveearthing |
RatedinsulationvoltageUi | 250V |
RatedimpulsewithstandvoltageUimp | 2.5kV,OvervoltagecategoryII,degreeofpolution3 |
ConventionalthermalcurrentIth | 6A |
Ambient conditions according to DIN EN 60947-5-5 | |
Permissible ambient temperature | –25°C… +70°C |
Extended ambient temperature | –40°C… +70°C (type HES 7xx) |
Protection rating (according to EN 60529) | IP65 / IP67 |
Reliability | |
Contact reliability | >30.000 operations bei 100% Ie |

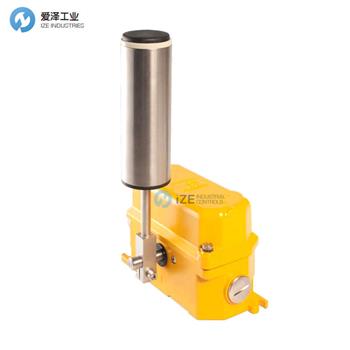

KIEPE錯位開關HES系列介紹
偏移開關HES
外殼：鋁材質
滾輪材料：不銹鋼
切換點：5°..15° 和 15°..35°（可調）
觸點配置：最多4個轉換觸點（正接通）
變體：
增強溫度范圍，雙線總線模塊（HES 211），斷線檢測
附加認證：
UL（僅限HES 5xx）*
EAC
*注意：UL型號與標準設計不同。請參閱其他文件。
Misalignment Switch HES
enclosure: Aluminum - material of roller: stainless steel - switching points: 5°..15° and 15°..35° (adjustable)
Contact configuration: up to 4 changeover contacts (positive making)
Variants:
enhanced temperature range, two(2)-wire-bus modul (HES 211), wire-break detection
Additional Certificates
UL (only HES 5xx)*
EAC
*Note: The UL-variants differ from standard design. See additional documents.
KIEPE錯位開關HES系列其他常用型號：
KIEPE HES913
KIEPE HES 011
KIEPE HES 017
KIEPE HES 711
KIEPE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KIEPE錯位開關HES913的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KIEPE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
KIEPE錯位開關HES系列HES913技術參數介紹
