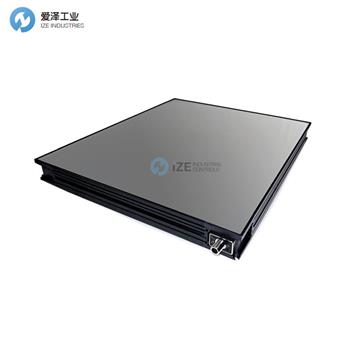

TPL VISION背光源CMBACK-O-2020-WHI-M1技術參數
- | CMBACK |
VERSION | O = OVERDRIVE |
LENGTH | 20 cm |
WIDTH | 20 cm |
COLOUR | WHI = WHITE |
WIRING | TYPE: M = CONNECTOR M12 POSITION: 1 |
TPL VISION背光源CMBACK +系列介紹
半準直 CMBACK+是 一款 功能強大且漫射性極佳的背光源，專用于多種機器視覺應用。它采用 高功率 LED 和專用鏡頭，可產生極強的照明，幫助相機清晰地觀察工件形狀。
CMBACK+ 還配備了濾光片，可消除非垂直光線（與照明表面垂直軸成 30° 以上的夾角）。這種準直有助于獲得高對比度的圖像。因此，該產品推薦用于圓形或厚工件的邊緣檢測，以及透明工件（玻璃或塑料材質）上的標記或材料缺陷的檢測。
CMBACK+ 配備頻閃輸入和電位器，可以改變照明功率。OVERDRIVE版本還可以提供更高的照明功率。無論是連續模式 還是 頻閃模式，它都具有 較短的上升和下降時間：25 μs 和 15 μs。由于其 薄邊緣，半準直的 CMBACK+均勻地照亮了 整個分析表面。此外， 連接器 可以放置 在燈的任何一側， 從而可以輕松地將其安裝在任何類型的傳送帶上。在連接器的底部，2 個LED顯示產品是否通電以及頻閃模式是否打開。CMBACK+ 有各種波長和 各種尺寸可供選擇 。
The semi-collimated CMBACK+ is a powerful and very diffuse backlight, dedicated to many machine vision applications. With high powerful LED and specific lenses, it creates a very intense illumination, that helps cameras to clearly see workpieces shapes.
The CMBACK+ is also manufactured with filters, which eliminate the non-perpendicular light (>30° compared to the vertical axis of the lighting surface). This collimation helps to get highly contrasted images. This is why this product is recommended for the edge detection of round or thick workpieces, and also for the detection of markings or material defects on transparent workpieces (made of glass or plastic).
The CMBACK + is equipped with a strobe entry and a potentiometer, which enables to vary the lighting power. The OVERDRIVE version can also offer a far higher lighting power. Either in continuous or in strobe mode, it has short rising and falling times: 25 μs and 15 μs. Thanks to its thin edges, the semi-collimated CMBACK+ uniformly illuminates the whole surface analysed. Moreover, the connector can be placed on any side of the light, making it easy to set it up on any kind of conveyor belts. In the base of the connector, 2 LED show if the product is powered and if the strobe mode is on. The CMBACK+ is available in various wavelengths and also in various dimensions.

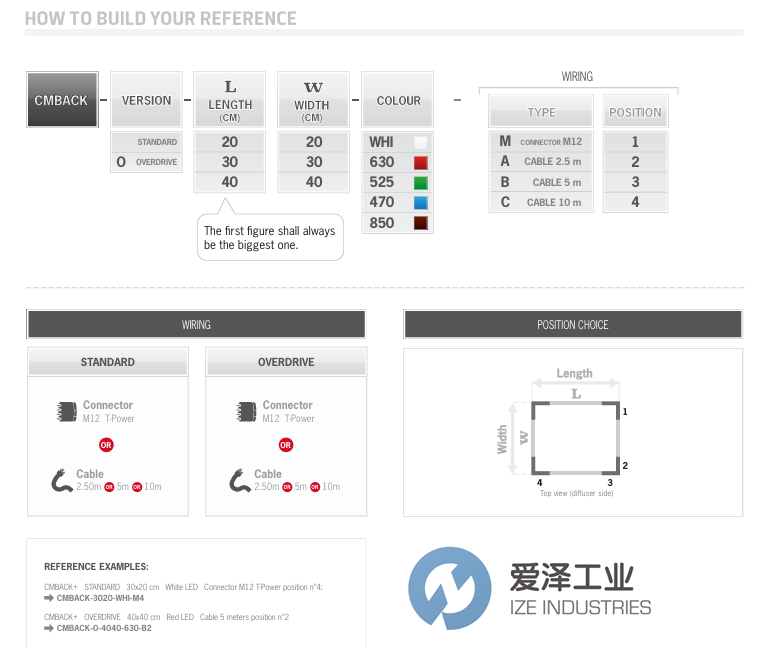

TPL VISION背光源CMBACK +系列選型
TPL VISION背光源CMBACK +系列其他常用型號：
TPL VISION CMBACK-O-2020-WHI-M1
TPL VISION CMBACK-O-2020-WHI-A2
TPL VISION CMBACK-O-2020-630-B3
TPL VISION CMBACK-O-2030-525-C4
TPL VISION CMBACK-E-3030-630-M1
TPL VISION CMBACK-E-3040-470-A2
TPL VISION CMBACK-E 4040-850-B3
TPL VISION CMBACK-E-4020-850-C4
TPL VISION Backlight NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TPL VISION背光源CMBACK-O-2020-WHI-M1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TPL VISION products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
TPL VISION背光源CMBACK+系列CMBACK-O-2020-WHI-M1技術參數及選型
