DANFOSS壓縮機MTZ22-4技術參數
R407C | |
Compressor model | MTZ022-4 |
Refrigeration | |
50 Hz, EN12900 ratings To = -10 °C, Tc = 45°C, SC = 0 K, SH = 10 K | |
Cooling capacity W | 2 620 |
Power input kW | 1.48 |
Current input A | 3.06 |
C.O.P. W/W | 1.77 |
50 Hz, ARI ratings To = -6.7 °C, Tc = 48.9 °C, SC = 0 K, SH = 11.1 K | |
Cooling capacity W | 2 830 |
Power input kW | 1.62 |
Current input A | 3.24 |
E.E.R. Btu.h/W | 5.96 |
60 Hz, ARI ratings To = -6.7 °C, Tc = 48.9 °C, SC = 0 K, SH = 11.1 K | |
Cooling capacity W | 3 600 |
Power input kW | 2.05 |
Current input A | 3.27 |
E.E.R. Btu.h/W | 6 |

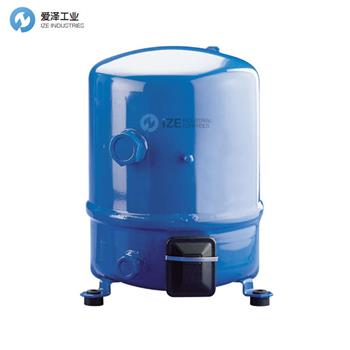

DANFOSS壓縮機MT/系列MTZ 介紹
Maneurop MT 和 MTZ 系列壓縮機為密封往復式壓縮機，專為中高蒸發溫度應用而設計。
內部電機保護、高效循環閥設計和高扭矩電機的積極優勢保證了高質量的安裝。
MT 和 MTZ 具有相同的機械和電機設計。
MT 充有礦物油，而 MTZ 充有聚酯油。
這些壓縮機系列可根據其與油的兼容性與多種制冷劑一起使用。
Maneurop MT and MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.
The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.
MT & MTZ have the same mechanical and motor design.
MT is charged with mineral oil while MTZ with polyester oil.
These compressor ranges can be used with a large choice of refrigerants according their compatibility with the oil.

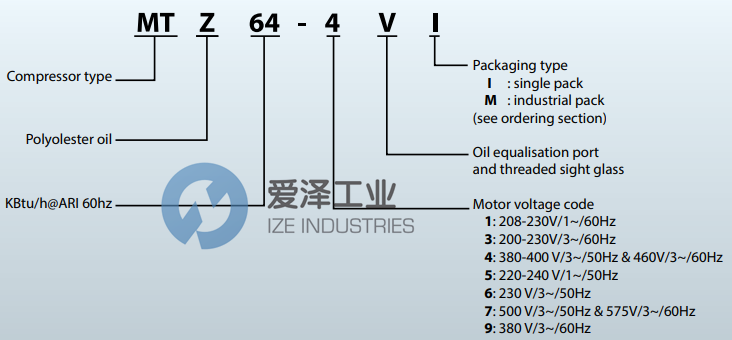

DANFOSS壓縮機MTZ系列選型
DANFOSS壓縮機MTZ系列其他常用型號：
DANFOSS MTZ22-4
DANFOSS MTZ22-4VM
DANFOSS MTZ22-5VM
DANFOSS MTZ22-9VM
DANFOSS MTZ28-1VM
DANFOSS MTZ28-3VM
DANFOSS MTZ28-4VM
DANFOSS MTZ28-5VM
DANFOSS MTZ28-9VM
DANFOSS MTZ32-1VM
DANFOSS MTZ32-3VM
DANFOSS MTZ32-4VM
DANFOSS MTZ32-5VM
DANFOSS MTZ32-9VM
DANFOSS COMPRESSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS壓縮機MTZ22-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
DANFOSS壓縮機MTZ系列MTZ22-4技術參數及選型
