JOVENTA執行器SF..2.90..系列技術參數
Actuator | SF..2.90.. |
Torque | 16 Nm |
Damper area | (m2) Per manufacturer’s information |
Running time Motor | 90...120 s |
Running time Spring return | 10 s |
Supply voltage | AC230V |
Frequency | 50-60 Hz |
Power consumption- Running | 8.0 W |
Dimensioning | 13.0 /0.3A |
Weight | 2.9 |
Control signal | 2-point |
Position signal | None |
Angle of rotation / working range | 90° |
Angle of rotation / limitation | None |
Service lifetime | 60,000 rotations |
Auxiliary switches | 3(1.5)A, AC230V |
Noise level | 50 dB (A) |
Protection class | II |
Degree of protection | IP 54 |
Cable aperture connection | PG11 |
Mode of action | Type1 |
Ambient conditions: | - Operating temperature –20...+50°C / IEC 721-3-3 |
Service | Maintenance free |
Standards | Mechanics EN 60 529/EN 60 730-2-14 |

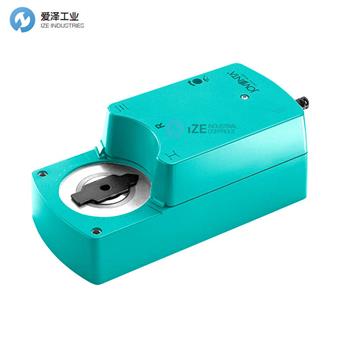

JOVENTA執行器Security Fire系列介紹
JOVENTA SECURITY FIRE 電動彈簧復位阻尼器系列專為安全阻尼器的電動操作而開發，例如防火防煙阻尼器。當施加控制信號時，執行器將阻尼器驅動至操作位置，同時均勻張緊集成彈簧。斷電后，彈簧中儲存的能量會立即將阻尼器帶到安全位置。當執行器處于電動操作時，手動操作會自動取消。
The JOVENTA SECURITY FIRE electric, spring return damperactuator series has been specially developed for the motorized operation of safety dampers e.g. fire and smoke protection dampers. When the control signal is applied the actuator drives the damper to the operational position, while evenly tensioning the integrated spring. After a power failure the stored energy in the spring immediately brings the damper to the safety position. Manual operation is automatically cancelled when the actuator is in electrical operation.
JOVENTA執行器Security Fire系列其他常用型號：
JOVENTA SFR1.90/10
JOVENTA SFR1.90/11
JOVENTA SFR1.90/12
JOVENTA SFR1.90/14
JOVENTA SFR2.90/10
JOVENTA SFR2.90/11
JOVENTA SFR2.90/12
JOVENTA SFR2.90/12S
JOVENTA SFR2.90/14
JOVENTA ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOVENTA執行器SFR2.90/12S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOVENTA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
JJOVENTA執行器Security Fire系列SFR2.90/12S技術參數介紹
