GRUNER執行器361-230-20技術參數
Technical Data | |
Nominal Voltage | 230 VAC/DC, 50/60 Hz |
Operating Range | 85...265 VAC/DC |
Motor Power Consumption (Movement) | 10.5 W |
Standby Power Consumption (End Position) | 2.5 W |
Dimensioning | 22.5 VA |
Control | 2-point |
Feedback Signal | - |
Auxiliary Switch | - |
Contact Rating | - |
Switching Points | - |
Motor Connection | Cable 1000 mm, 2 x 0.75 mm2 (halogen-free) |
Feedback Potentiometer Connection | - |
Auxiliary Switch Connection | - |
GUAC Connection | - |
Motor Torque | 20 Nm |
Spring Torque | 20 Nm |
Damper Size | up to approx. 4 m2 |
Synchronization | ±5% |
Direction of Rotation | selectable by installation |
Manual Adjustment | Manual winding with locking mechanism |
Angle of Rotation | 0°...max. 95° limitable by adjustable mechanical stops |
Motor Running Time | 75 s / 90° |
Spring Running Time | 20 s / 90° |
Motor Sound Power Level | < 45 dB(A) |
Spring Sound Power Level | < 65 dB(A) |
Shaft Drive | Clamping yoke terminal ? 9-18 mm / ? 9-26 mm |
Position Indicator | Mechanical with pointer |
Service Life | > 60,000 cycles (0°...95°...0°) |
Protection Class | II (double insulated) |
Protection Type | IP 54 (cable down) |
EMC | CE (2014/30/EU) |
LVS | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of Operation | Type 1.AA B (EN 60730-1) |
Rated Impulse Voltage Supply / Control | 4 kV |
Ambient Pollution Degree | 3 (EN 60730-1) |
Ambient Temperature Normal Operation | -30°C...+50°C |
Storage Temperature | -30°C...+80°C |
Ambient Humidity | 5...95% RH, non-condensing |
Maintenance | Maintenance-free |
Dimensions | 193 x 96 x 70 mm |
Weight | 1600 g |
GRUNER執行器361-230-20介紹
彈簧返回執行器，扭矩20 Nm，電壓230 VAC/DC，2點控制，75秒/90°，IP54用于HVAC系統中調節空氣阻尼器的彈簧返回執行器

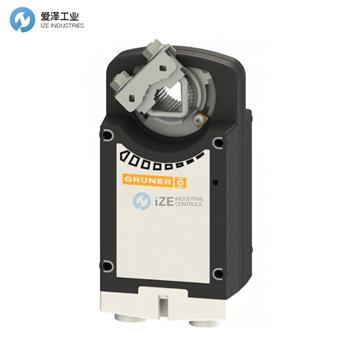

Spring-return actuator, 20 Nm, 230 VAC/DC, 2-point, 75 s / 90°, IP 54 Spring-return actuator for adjusting air dampers in HVAC systems
GRUNER執行器其他常用型號：
GRUNER 361-230-20
GRUNER 361-230-20-S2
GRUNER ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
