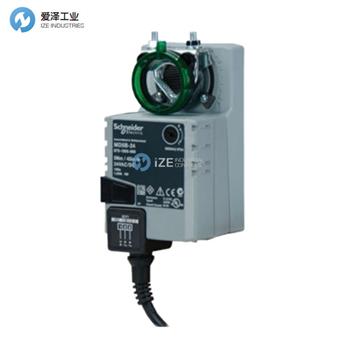

SCHNEIDER執行器MD5A-24技術參數
Specifications | |
Part number | 875-1009-000 |
Power supply | 24 V AC ±20%, 50–60 Hz, |
Power consumption | |
In operation | 1 W @ nominal torque |
At rest | 0.4 W |
For transforming sizing | 2 VA |
Connection cable | 1 m (3.3 ft), 4×0.75 mm2 (AWG 18) |
Control signal X | 0…10 Vdc |
Input resistance | 100 k Ohm |
Operating range | 2…10 Vdc (for set angle of rotation) |
Synchronisation tolerance | ±5% |
Position feedback Y | 2…10 Vdc (max. 1 mA) |
Angle of rotation | max. 95° (adjustable by mechanical stops) |
Torque | min. 5 Nm (45 in-lb) @ nominal voltage |
Sound power level | max. 35 dB (A) |
Maintenance | Maintenance-free |
Weight | Approx 0.5 kg (1.3 lb.) |
SCHNEIDER執行器MD5A-24產品介紹
? 致動器通過標準控制信號2...10Vdc進行控制。它打開到由這個信號決定的位置。測量電壓Y讓阻尼器位置（0...100%）通過電指示，并作為其他執行器的后續控制信號。
? 簡單的直接用通用主軸鉗安裝在阻尼器主軸，提供一個防旋轉帶，以防止執行器旋轉。
? 可通過自動復位按鈕進行手動操作（只要按下或保留按鈕，傳動裝置鎖扣就會保持脫離）。
? 可調節機械端停止的旋轉角度。
? 功能可靠性高：執行機構防過載，不需要限位開關，達到終端時自動停止。
? The actuator is controlled by means of a standard control signal 2…10 Vdc. It opens to the position dictated by this signal. The measuring voltage Y allows the damper position (0 ... 100%) to be electrically indicated and serves as a follow-up control signal for other actuators.
? Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.
? Manual operation is possible with the self-resetting pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).
? Adjustable angle of rotation with mechanical end stops.
? High functional reliability: The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

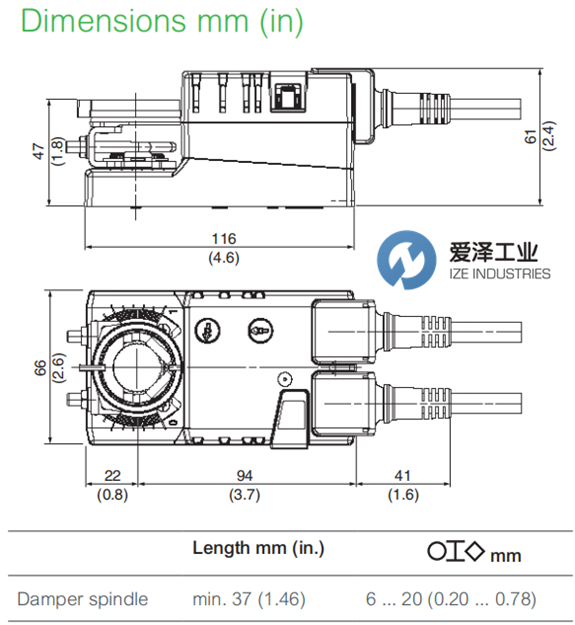

SCHNEIDER執行器MD5A-24技術尺寸
SCHNEIDER執行器MD系列其他常用型號：
SCHNEIDER MD40A-24
SCHNEIDER MD20A-24
SCHNEIDER MD10A-24
SCHNEIDER MD5A-24
SCHNEIDER Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHNEIDER執行器MD5A-24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHNEIDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
SCHNEIDER執行器MD5A-24技術參數及尺寸
