JEVI散熱器60505212技術參數
240V
160W
Profll：250mm
Termostat：110℃
IP55
JEVI散熱器介紹
防凝露加熱器
用于密封開關板和控制柜的除濕加熱元件。隨著節能要求的提高，開發出了低功耗的組件。舊的發熱線圈和繼電器已被低熱損失的新型結構和新技術所取代。這樣開發出的小型緊湊組件帶來了 moisture 和冷凝問題的增加。
電子控制仍然是控制和調節任務的首選方案，這些常常是復雜結構的設備，印刷電路板上的爬電距離較小，對 moisture 和溫度變化非常敏感。
在開關板和控制柜中，解決 moisture 問題的方法是將溫度提高幾度，略高于環境溫度。這樣就能實現干燥的控制柜，保護內部的組件不會受到損害。
由于如印刷電路板和塑料柜的溫度限制，使用具有大面積的加熱元件以低表面溫度尤為重要。防凝露加熱器設計時考慮了這一點，溫度限制（約65°C）已整合到結構中。其體積小巧，方便安裝在大多數控制柜和開關板中。
散熱片的輪廓設計具有最佳表面積，能在循環氣流中實現優異的熱傳導。該加熱元件由黑色陽極氧化鋁制成，優化了熱傳導和散發。
防凝露加熱器可提供帶溫度限制的版本，或者使用自限制結構，其中PTC元件根據周圍溫度為散熱片提供電力。

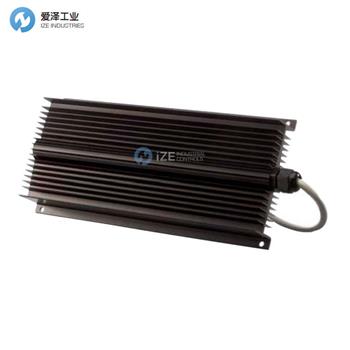

ANTI-CONDENSATION HEATER
Heating elements for dehumidification of sealed switchboards and control cabinets. The increased demands on energy saving have resulted in development of components with a low power consumption. The old heat generating coils and relay, have been replaced by constructions with low heat loss and new technology. It results in development of small and compact components which causes increasing problems with moisture and condens.
Electronics will continue to be the preferred solution to control and regulation tasks and these often complex constructions, with small creepage distances on print, are very sensitive to moisture and variation in temperature.
In switchboards and cabinets the problem with moisture is solved by increasing the temperature with a few degrees above the surrounding temperature. The result is a dry cabinet without damaging the components inside.
Due to temperature limitations on e.g. print and plastic cabinets, it is important to use a heating element with a large surface and thus low surface temperature. The anti-condensation heater is designed to meet these properties. The temperature limit (approx. 65°C) is integrated into the construction, and the small physical dimensions enables installation in most cabinets and switchboards.
The cooling fin profile has an optimal surface in relation to heat transfer in circulating airflow. The element is made of black anodized aluminium which optimises heat conduction and emission.
The anti-condensation heater is supplied with temperature limit or as a self limiting construction where, a PTC element supplies the profiles with power according to the surrounding temperature.
JEVI散熱器其他常用型號：
JEVI 60505212
JEVI 60000220
JEVI 60505005
JEVI 60505013
JEVI 60505021
JEVI 60900020
JEVI 60505039
JEVI 60505047
JEVI 60505054
JEVI 60505062
JEVI 60505070
JEVI 60505088
JEVI 60505096
JEVI 60505104
JEVI 09600227
JEVI 09600252
JEVI 09600244
JEVI 09600610
JEVI FAN HEATER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JEVI散熱器60505212的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JEVI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
