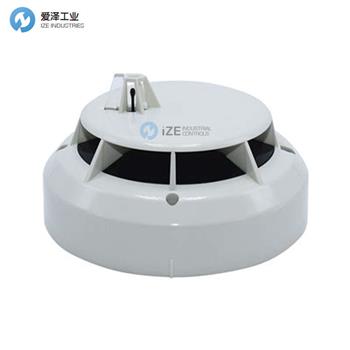

HOCHIKI熱探測器SOE-24H技術參數
Sensing Element | |
Heat | Thermistor |
Smoke | IR LED, Blue LED, Photodiode |
Supply Voltage | |
Operating Voltage Range | 8-35VDC |
Absolute Max Voltage | 42VDC |
Maximum Voltage Ripple | 8200mVAC |
Maximum Input Capacitance | 0.01uF |
Current Consumption | |
Standby Current | 59μA |
Remote Indicator Current | 8.0mA (Internally Limited) |
Minimum Allowable Alarm Current | 5mA |
Maximum Allowable Alarm Current | 150mA |
Startup | |
Time | 25s (Max) |
Current | 160uA (Max) |
Reset | |
Time | 100ms (Min) |
Voltage | 2.5V (Min) |
Smoke Density Range | 1.80-3.16%/ft@ Open area |
Fixed Heat Temperature | 135°F |
Compatible Bases | NS4-100, NS6-100, NS4-220, NS6-220, N S4-221, NS6-221, NS4-224, NS6-224 |
Operating Temperature Range | 32°F ~ 120°F (0°C ~ 49°C) |
UL Listed Ambient Temperature | 32°F ~ 120°F (0°C ~ 49°C) |
Storage Temperature Range | -22°F ~ +140°F (-30°C ~ 60°C) |
Operating Humidity Limit | <95%RH at 104°F (40°C), <80%RH at 120°F (49°C) |
Dimension | 3.94” diameter x 2.18” tall (10.0076cm x 5.54cm) |
Weight | 3.4 oz. (96.39g) |
Color | Ivory |
HOCHIKI熱探測器SOE-24H產品介紹
描述
SOE-24H（符合UL 268第7版認證）是一款結合煙霧和UL521第7版認證的熱探測器的設備。采用新型多光譜煙霧分類技術，能夠檢測悶燒火災和明火火災，包括聚氨酯燃料，同時降低誤報烹飪報警的可能性。SOE-H的寬溫度范圍使其非常適用于清潔能源儲存應用，如電池儲能室或集裝箱。在作為大型火災抑制系統一部分的熱探測器中使用時，結合SOE-V、Hochiki釋放面板和易燃?xì)怏w傳感器，提供了一種全面可靠的解決方案，用于保護高風險能源儲存環境。
標準特性
優化減少誤報，提高對真實火災的反應速度
高信噪比和靈敏度穩定性，在各種環境條件下表現穩定
廣視角報警指示燈
自動漂移補償和維護指示
內置磁性測試功能
可拆卸、隱藏鎖定設計，適配NS底座
操作規格：
煙霧密度范圍：1.80-3.16%/ft（開闊區域）
固定熱溫：135°F
工作溫度范圍：32°F ~ 120°F（0°C ~ 49°C）
UL認證環境溫度：32°F ~ 120°F（0°C ~ 49°C）
儲存溫度范圍：-22°F ~ +140°F（-30°C ~ 60°C）
工作濕度限制：在104°F（40°C）時<95%相對濕度，在120°F（49°C）時<80%相對濕度
DESCRIPTION
The SOE-24H is (UL 268 7th edition listed) is a combination smoke and UL521 7th Edition listed heat detector. The new multi-spectrum smoke categorization technology detects smoldering and flaming fires, including polyurethane fuels, while reducing nuisance cooking alarms. The SOE-H's broad temperature ranges make it ideal for clean energy storage applications such as battery energy storage rooms, or containers. Used as the heat detector as part of a larger fire suppression system, the SOE-H in conjunction with the SOE-V, Hochiki Releasing panels and flammable gas sensors - provides a comprehensive and reliable solution for protecting high-risk energy storage environments.
STANDARD FEATURES
Optimized reduction to false alarms and enhanced reaction time to real fires
High signal-to-noise ratio and sensitivity stability effective in a wide range of environmental conditions
Wide viewing angle alarm indicators
Automatic drift compensation and maintenance indication
Built-in magnetic test feature
Break-away, hidden locking feature for use with NS bases
Operating Spezifikation:
Smoke Density Range 1.80-3.16%/ft@ Open area
Fixed Heat Temperature 135°F
Operating Temperature Range 32°F ~ 120°F (0°C ~ 49°C)
UL Listed Ambient Temperature 32°F ~ 120°F (0°C ~ 49°C)
Storage Temperature Range -22°F ~ +140°F (-30°C ~ 60°C)
Operating Humidity Limit <95%RH at 104°F (40°C), <80%RH at 120°F (49°C)
