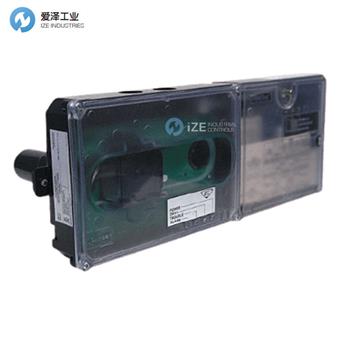

EDWARDS SIGNALING煙霧探測器SD-4WJ技術參數
Dimensions | Controller: 6.75” x 5.45” x 1.90” inches (17.15 cm x 13.84 cm x 4.83 cm) |
Wire size | High voltage power input terminals (L&N): #12 to #22 AWG All others: #14 to #22 AWG |
Wiring distance | Detector to Controller: 100 feet max for each detector |
RJ-45 wiring harness | Cable type: CMP |
Smoke detection method | Photoelectric |
Air velocity rating | 100 to 4,000 ft/min and meets the required minimum air pressure differential |
Air pressure differential | 0.005 to 1.00 inches of water |
Sensitivity | 0.67 to 2.46 %obscuration/ft |
Reset time | 2 seconds, max. |
Power up time | 8 seconds, max. |
Alarm test response time | 5 to 7 seconds |
Controller LED indicators | Alarm (red), Trouble (yellow), Power (green) |
Sensor LED indicators | Alarm (red), Trouble (yellow), Dirty (yellow), Power (green) |
Alarm initiation relay | Quantity: 1 Style: Normally open Ratings: 2.0 A at 30 Vdc (resistive) |
Auxiliary relay | Quantity: 2 |
Supervision (trouble) relay | Quantity: 1 |
Auxiliary output | 18 Vdc, nom., 30 mA, max. |
Operating environment | Temperature (UL): -4 to 158 °F (-29 to 70 °C). Temperature (ULC): -4 to 120 °F (-29 to 49 °C) |
Operating voltages | 24 Vdc, 24 V at 50/60 Hz, 120 V at 50/60 Hz, 220/240 V at 50/60 Hz |
Agency Approvals | UL, ULC, CSFM, FM, MEA |
EDWARDS SIGNALING煙霧探測器SD-4WJ產品介紹
Edwards SuperDuct 煙霧探測器是同類產品中優質、可靠的設備。 SuperDuct 專為易于安裝和卓越的可靠性而設計，代表了實用設計和優質技術的平衡。
探測器組件
? 深度小于 2"，便于安裝
? 具有板載智能的 PCB 安裝光電探測器
? 獲得專利的差分感應環境補償
? -4°F 至 158°F（-20°C 至 70°C）工作范圍
? 100 英尺/分鐘。 至 4,000 英尺/分鐘的額定風速
? 標準RJ45模塊化互連
? 狀態 LED 透過透明組件蓋仍然可見
? 蓋上防拆簧片開關以增加安全性
? 標準采樣管和安裝孔
? 與控制器組件串聯安裝，或遠離它安裝
? 采樣管從外殼的正面或背面安裝
? 磁鐵啟動測試/臟污/復位開關
? 無需打開探測器進行安裝
控制器
? 一個控制器最多可連接兩個檢測器
? 標準連接，便于從其他檢測器遷移
? 24 Vac、24 Vdc、120 Vac 或 230 Vac 操作
? 狀態 LED 透過透明組件蓋仍然可見
? 位于底部的敲除
? 報警觸點、故障觸點和兩個 10 安培輔助觸點
? 無需特殊工具即可輕松訪問現場連接
? 互連多達 15 個控制器以關閉多個風扇
Edwards SuperDuct smoke detectors are the most advanced and most reliable devices in their class. Designed for easy installation and superb reliability, SuperDuct represents the perfect balance of practical design and advanced technology.
Detector assembly
? Less than 2" deep for easy installation
? PCB mounted photoelectric detector with on-board intelligence
? Environmental compensation with patented differential sensing
? -4°F to 158°F (-20°C to 70°C) operating range
? 100 ft/min. to 4,000 ft/min air velocity rating
? Standard RJ45 modular interconnection
? Status LEDs remain visible through clear assembly cover
? Cover tamper reed switch for added security
? Standard sampling tube and mounting holes
? Install in tandem with the controller assembly, or remotely from it
? Sampling tubes install from front-side or back-side of housing
? Magnet-activated test/dirty/reset switch
? No need to open the detector for installation
Controller
? One controller for up to two detectors
? Standard connections for easy migration from other detectors
? 24 Vac, 24 Vdc, 120 Vac or 230 Vac operation
? Status LEDs remain visible through clear assembly cover
? Knockouts located on the bottom
? Alarm contact, trouble contact, and two 10 amp auxiliary contacts
? No special tools required for easy access to field connections
? Interconnect up to 15 controllers for multiple fan shut- down
