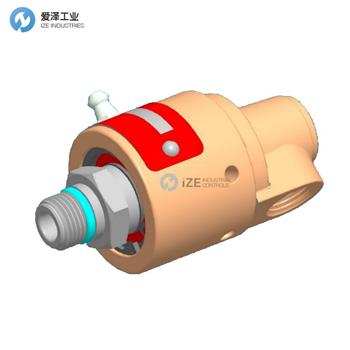

TURIAN旋轉接頭GR系列介紹
這是一款多用途旋轉接頭系列。一對滾珠軸承確保密封面完美對準，即使在重載工況下接頭本身的扭矩也很低。平衡式密封可以使接觸面保持幾乎恒定的負載，不受流體介質壓力的影響，從而減少摩擦和磨損。標準設備提供合成碳石墨旋轉密封和燒結碳化硅固定密封，兩者可互換。在與水一起使用時，測試表明，在相同工況下，這種組合的使用壽命比碳石墨和陶瓷的組合長許多倍。如果需要非常耐磨的密封，可以提供SiC/SiC組合。浮動密封和轉子密封均可快速輕松更換，具有高耐磨性和長壽命，使該系列成為解決流體從靜態部件到旋轉部件傳輸問題的經濟實惠的解決方案。
This is a versatile range of rotary unions. A pair of ball bearings ensures perfect alignment of the sealing faces, and the torque on the union itself is low even under heavy loads. Balanced seals maintain a nearly constant load on the contact surfaces, independent of the pressure of the fluid medium, reducing friction and wear. Standard equipment includes a synthetic carbon graphite rotary seal and a sintered silicon carbide stationary seal, both of which are interchangeable. When used with water, tests have shown that this combination has a service life many times longer than a combination of carbon graphite and ceramic under the same operating conditions. If extremely wear-resistant seals are required, a SiC/SiC combination is available. Both floating and rotor seals can be replaced quickly and easily, and their high wear resistance and long life make this series an economical solution for transferring fluids from static to rotating components.

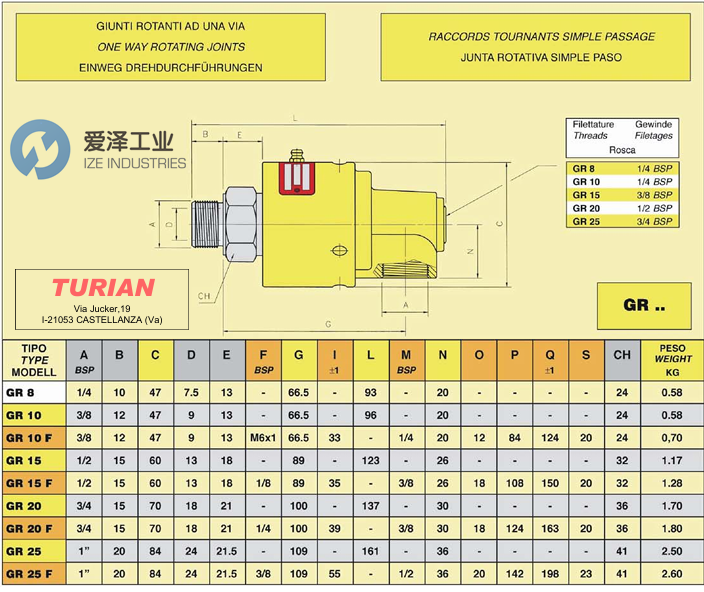

TURIAN旋轉接頭GR系列規格尺寸
TURIAN旋轉接頭GR系列其他常用型號：
TURIAN GR15-9387
TURIAN GHR 34 2U
TURIAN GR 40F LH
TURIAN GR 20F RH
TURIAN G-2V-9743
TURIAN GR 25 F RH
TURIAN GH-34-2U/SP
TURIAN GR-25-RH
TURIAN GR-25-B-RH
TURIAN GR 40 RH
TURIAN GR 20 LH
TURIAN GR 20 RH
TURIAN Rotary joint NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TURIAN旋轉接頭GR15-9387的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TURIAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
TURIAN旋轉接頭GR系列GR15-9387技術參數及介紹
