EATON保險絲17.5CAV2規格
General specifications | |

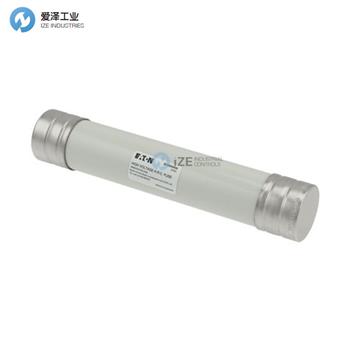

Product Name | Eaton Bussmann series medium auxiliary fuse |
Catalog Number | 17.5CAV2 |
Product Length/Depth | 220 mm |
Product Height | 41.3 mm |
Product Width | 41.3 mm |
Product Weight | 700 g |
Warranty | Not Applicable |
Certifications | IEC60282-1 |
Global Catalog | 17.5CAV2 |
Product specifications | |
Amperage Rating | 2 A |
Fuse indicator | Non Indicating |
Fuse size | 220 x 41.3 mm |
Breaking capacity | 40 kA |
Installation technique | Air |
Performance Cat According To IEC 60282-1 | Back-up |
Product application | Auxiliary transformer protection |
Release characteristic | Other |
Standard | IEC |
Utilization Category | Other |
Voltage type | AC |
With striker | No |
Class | Class back-up |
Barrels | 1 |
Construction type | Bolt-on |
Fuse shape | Cylindrical |
Resistance | 1.69 ohms |
Interrupt rating | 40 kAIC |
Connection | Ferrule end x ferrule end |
Construction size | 220 x 41.3 mm |
Voltage rating | 17.5 kV |
Type | fuse |
Application | Protection of auxiliary transformers |
Fuse type | CAV |
EATON保險絲17.5CAV2產品介紹
VT 熔斷器，適用于中壓，額定電流 2 A，交流 17.5 kV，尺寸 220 x 41.3 mm，備用類型，符合 IEC 標準。
VT fuse-link, medium voltage, 2 A, AC 17.5 kV, 220 x 41.3 mm, back-up, IEC
EATON保險絲其他常用型號：
EATON 17.5CAV2
EATON 17.5CAV6
EATON 17.5CAV4
EATON 17.5CAV10
EATON fuse NEW + ORIGINAL+ ONE YEAR WARRANTY
