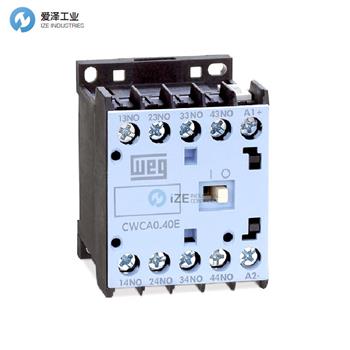

WEG接觸器BU CWCA0-40-00D23技術參數
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 | 690 V |
Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
Rated operational frequency - minimum | 25 Hz |
Rated operational frequency - maximum | 400 Hz |
Mechanical lifespan (AC) | 10 million |
Mechanical lifespan (DC) | 12 million |
Electrical lifespan | Not available |
Degree of protection IP (IEC 60529) - Main circuit | IP20 |
Degree of protection IP (IEC 60529) - Control circuit | IP20 |
Rated current | 10 A |
Rated current In - AC-4 | Not available |
Rated operational Current Ie AC-1 (? = 55 oC) | 10 A |
Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
Rated operational voltage Ue - UL/CSA | 600 V |
Height | 58 mm (2.28 in) |
Width | 45 mm (1.77 in) |
Depth | 52 mm (2.05 in) |
Weight | 194 g |
WEG接觸器CWCA0系列介紹
專為控制電路中的不同應用而開發。它們可直接安裝在DIN導軌EN 50.002上或用螺釘固定，尺寸緊湊，并提供齊全的配件。
CWCA0 系列輔助微型接觸器和接觸器專為控制電路中的各種應用而設計。
主要特點：
直接安裝在35毫米DIN導軌上或用螺釘固定；
防止異物和觸摸；
觸點可靠性高（17 V - 5 mA）；
CWCA0緊湊型接觸器帶有低功耗直流線圈，可直接連接到PLC；
CWCA0 型號的尺寸相同（交流或直流線圈）；
CWCA0 緊湊型接觸器符合 IEC 60947-5-1 關于機械連接觸點的要求。
Developed for different applications on control circuits. They can be directly mounted on DIN rail EN 50.002 or tightened with screws, and offer compact size and a full line of accessories.
The CWCA0 series auxiliary miniature contactors and contactors are designed for various applications in control circuits.
Main Characteristics:
Directly mounted on DIN rail 35 mm or tightened with screws;
Protected against foreign bodies and touch;
High reliability of the contacts (17 V - 5 mA);
CWCA0 compact contactor with low-consumption DC coils, enabling direct connection to PLCs;
Same dimensions (AC or DC coil) for the CWCA0 models;
The CWCA0 compact contactors meet the requirements of IEC 60947-5-1 regarding contacts mechanically linked.
WEG接觸器CWCA0系列其他常用型號：
WEG BU CWCA0-40-00D15
WEG BU CWCA0-40-00D17
WEG BU CWCA0-40-00D23
WEG BU CWCA0-40-00D23S
WEG BU CWCA0-40-00D24S
WEG BU CWCA0-40-00D25
WEG BU CWCA0-40-00D25S
WEG BU CWCA0-40-00D28
WEG BU CWCA0-40-00D33
WEG BU CWCA0-40-00D34
WEG BU CWCA0-40-00D36
WEG BU CWCA0-40-00L03
WEG BU CWCA0-40-00L03S
WEG BU CWCA0-40-00M02
WEG Contactor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WEG接觸器BU CWCA0-40-00D23的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
