ELECTROSWITCH旋轉開關107系列技術參數
Mechanical Specifications | |
Switch sections | 1-8 |
Switch poles | 1-8 |
Switch positions | 2-4 |
Switch indexing | 90° |
Electrical Specifications | |
Continuous rating | 200A-600V |
Max. breaking ability | 600A |
Max. making ability | 600A |
Interrupting current | 250VDC, 30A |
Dielectric strength | 2200Vrms |
Insulation resistance | 100 megaohms |
Contact resistance | 1.5 milliohms |
Switch mountings | 4-hole |
Approvals | UL Recognized |
ELECTROSWITCH旋轉開關107系列介紹
重型2至4位置快充式旋轉開關，最高可用8極
通過單個手柄實現多個電源電路的同時操作。
切換速度快——不依賴操作人員動作
快速接通和斷開，接觸轉移時間約為10毫秒
非常適用于直流和交流切換
所有接觸的接通和斷開均在完全封閉的底座內完成
多功能——提供多種特殊設計以滿足各種應用需求
提供軍用規格（請聯系工廠獲取）
絕緣材料——NEMA A類（105°C）
雙刮擦觸點，即使在極端沖擊和振動下也能保持低電阻

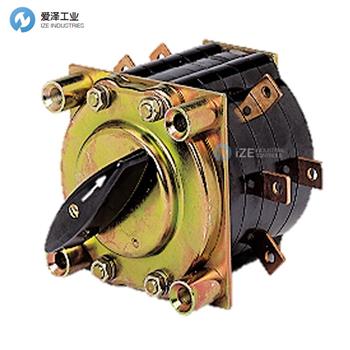

Heavy duty, 2 - 4 position snap-action rotary switch up to 8 poles
Enables numerous power circuits to be operated simultaneously by a single handle.
Fast Switching speed - not dependent on operator action
Quick make and break action. Approximately 10 Millisecond contact transfer time
Excellent for DC as well as AC switching
All making and breaking of contacts takes place in the fully enclosed decks
Versatile - many special designs are available to fit every application
Available in MIL Spec versions (contact factory)
Insultating materials - NEMA Class A (105 degree C)
Double-Wiping Contacts for Low Resistance Even Under Extreme Shock and Vibration
ELECTROSWITCH旋轉開關107系列其他常用型號：
ELECTROSWITCH 107406LA
ELECTROSWITCH SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELECTROSWITCH旋轉開關107406LA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELECTROSWITCH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
ELECTROSWITCH旋轉開關107系列107406LA技術參數及介紹
