HUBBELL插頭CS8365L技術參數
Product details | |
General | |
Application | Heavy Duty Industrial |
Catalog Number | CS8365L |
Color | Black |
Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
EU RoHS Indicator | Yes |
Item Type | 50A Male Nylon Plug |
Material | Composite |
Material - Mounting Hardware | Cord Mounted |
Number Of Poles | 3-Pole |
Style | Heavy Duty |
Type | Plugs |
Dimensions | |
Dimensions | 6.38 in x 2.56 in x 2.56 in |
Display Size | Standard Sized |
Height | 2.56 in |
Length | 6.38 in |
Width | 2.56 in |
Electrical Ratings | |
Amperage Rating | 50 A |
Connectivity | Terminal Screws |
Current Amperage Description | 50 Amp |
Current Rating | 50 A |
Phase | Three Phase |
Voltage Rating | 3 Phase 250 VAC |
Voltage Rating Description | 3 Phase 250 VAC |
Conductor Related | |
Cord Type | All Portable |
Number Of Wires | 4-Wire |
Wire Size | #18 AWG to #8 AWG |
Certifications And Compliance | |
Standards - RoHS Compliance Status | CM |
Logistics | |
Carton Quantity | 30 |
Pallet Quantity | 1500 |
HUBBELL插頭CS8365L產品介紹
鎖定裝置，Twist-Lock?，經濟型，公插頭，50A 三相 Delta 250V AC，3 極 4 線接地，非 NEMA，螺釘端子，黑色
目錄 ID：CS8365L
鎖定裝置，經濟型，公插頭，50A 三相 Delta 250V AC，3 極 4 線接地，非 NEMA，螺釘端子，黑色
公插頭
50A 三相 Delta 250V AC
3 極 4 線接地
非 NEMA 標準
螺釘端子

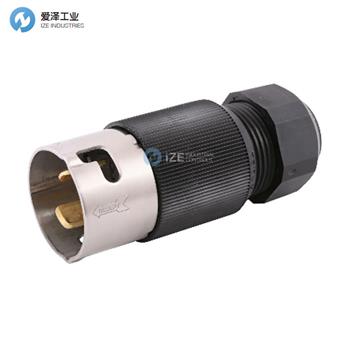

Locking Devices, Twist-Lock?, Economy, Male Plug, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Catalog ID:CS8365L
Locking Devices, Economy, Male Plug, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Male
50A 3-Phase Delta 250V AC
3-Pole 4-Wire Grounding
Non-NEMA
Screw Terminal
