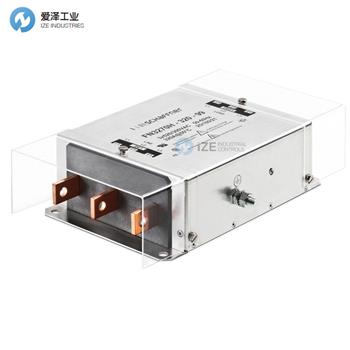

SCHAFFNER濾波器FN3270H-250-99技術參數
Technical specifications | |
Maximum continuous operating voltage | 3x 520/300 VAC (480 VAC +10% possible) |
Operating frequency | DC to 60 Hz |
Rated currents | 10 to 1000 A @ 50°C |
High potential test voltage | P –> E 2750 VDC for 2 sec |
P –> P 2250 VDC for 2 sec | |
Protection category | IP 20 (10 to 100 A) |
IP 00 (150 to 1000 A) | |
Overload capability | 4x rated current at switch on, |
1.5x rated current for 1 minute, once per hour | |
Temperature range (operation and storage) | -25°C to +100°C (25/100/21) |
Flammability corresponding to | UL 94 V-2 or better |
Design corresponding to | UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 |
MTBF @ 50°C/400 V (Mil-HB-217F) | >320,000 hours |
SCHAFFNER濾波器FN3270H-250-99產品介紹及選型
Features and benefits
An extremely compact and light weight filter design requiring minimum mounting space in installations and cabinets
Simple and time-saving installation with good accessibility for automatic and hand tools
Solid, touch-safe terminal blocks, for all filters from 10 to 100 A, offering sufficient contacting cross section according to the EN 60204-1 installation standard
Optionally available transparent protective covers for all filters with busbars from 150 to 1000 A, to protect the installer, operator or inspector from accidental touching of live conductors. They can easily be retrofitted even if the filter is already installed and connected
These EMC filters provide the attenuation performance needed to fulfill EN 61800-3/A11
Guaranteed filter performance under fullload operating conditions
15 different filter models allow the specific choice and deployment for most industrial applications
Typical applications
Variable speed electrical power drive systems/motor drives for mainly industrial purpose
Various industrial applications comprising frequency inverters, motor drives and servo drives
特點和優點
極其緊湊，重量輕的過濾器設計，在設備和機柜中需要最小的安裝空間
安裝簡便，省時，自動工具和手動工具均可輕松訪問
堅固，接觸安全的接線端子，用于所有10至100 A的濾波器，根據EN 60204-1安裝標準提供足夠的接觸橫截面
可選配的透明保護罩，用于所有帶150至1000 A母線的濾波器，以保護安裝人員，操作人員或檢查人員避免意外接觸帶電導體。即使已經安裝并連接了過濾器，也可以輕松對其進行改造
這些EMC濾波器可提供滿足EN 61800-3 / A11要求的衰減性能
在滿負荷運行條件下保證過濾器性能
15種不同的濾波器型號允許針對大多數工業應用進行特定選擇和部署
典型應用
主要用于工業用途的變速電力驅動系統/電動機驅動器
各種工業應用，包括變頻器，電機驅動器和伺服驅動器
SCHAFFNER濾波器FN3270系列其他常用型號列舉：
SCHAFNER FN 3270 H-10-44
SCHAFNER FN 3270 H-20-44
SCHAFNER FN 3270 H-35-33
SCHAFNER FN 3270 H-50-34
SCHAFNER FN 3270 H-65-34
SCHAFNER FN 3270 H-80-35
SCHAFNER FN 3270 H-100-35
SCHAFNER FN 3270 H-150-99
SCHAFNER FN 3270 H-200-99
SCHAFNER FN 3270 H-250-99
SCHAFNER FN 3270 H-320-99
SCHAFNER FN 3270 H-400-99
SCHAFNER FN 3270 H-600-99
SCHAFNER FN 3270 H-800-99
SCHAFNER FN 3270 H-1000-99
SCHAFFNER Pneumatic Mechanical Gripper NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHAFFNER濾波器FN3270H-250-99的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SCHAFFNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
