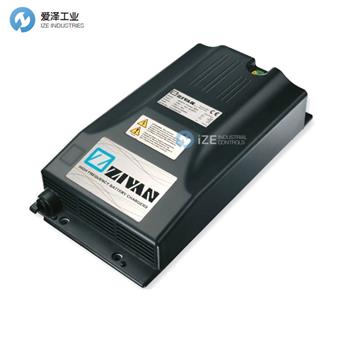

ZIVAN電池充電器G7ENCB.07020X.0是原F7BST1-00210X（已停產）的替代型號。
ZIVAN電池充電器G7ENCB.07020X.0 NG3技術規格
Input Voltage: | 230 VAC ± 10% 115 VAC ± 10 % |
Input frequency: | 50 – 60 Hz |
Efficiency: | > 85 % |
Minimum power absorbed: | < 5 W |
Current absorbed by the battery: | < 0,5 mA |
Operating temperature: | from –20 to+ 50 °C |
Output short-circuit protection (fuse) | |
Inverse polarity protection (fuse) | |
Charging curve: | programmable |
Accuracy on output voltage: | ± 0,5 % |
Thermal compensation of battery voltage (optional with thermal sensor ) | |
Acoustic alarm | |
Auxiliary contacts of main presence and end of charge (Standard Charger) or of air pump control and end of charge (Charger with air pump) | |
Cooling: | forced |
Case: | Metal base, cover in self-extinguishable PST |
Size: | 430 x 220 x 110 mm |
Weight: | 5,5 kg |
Enclosure class: | IP20 |
In conformity with the requirements of the Low Voltage Directive 73/23/EEC and of the Directive EMC 89/336/EEC and their following alterations. | |
ZIVAN電池充電器NG3系列介紹
單相充電器 NG3 是一款具有非凡多功能性、可靠性和效率的創新設備?？梢园惭b不同的軟件來更改充電功能并使它們適應各種電池。該型號的縮小尺寸意味著它不僅可以安裝在墻上，還可以隨身攜帶。因此，可以使用任何可用的插頭為電池充電，而無需將機器驅動到充電區域。
The Single Phase charger NG3 is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and to adapt them to every kind of battery. The reduced size of this model means that it can be not only installed on the wall, but also carried on-board. Consequently the battery can be charged in whichever plug available, without driving the machine to the charging area.
ZIVAN電池充電器NG3系列其他常用型號：
ZIVAN F7BST1-00210X
ZIVAN G7ENCB.07020X.0
ZIVAN battery charger NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ZIVAN電池充電器G7ENCB.07020X.0 NG3的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ZIVAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
ZIVAN電池充電器G7ENCB.07020X.0 NG3技術參數
