EX-TECH開關XBW系列技術參數
TECHNICAL DATA | |
Material | Metal and plastic |
IP rating | IP65 or IP66 according to EN/IEC 60529 |
Temperature range | -20°C ... +75°C |
Certificate | INERIS 02ATEX9007U |
Marking | II 2 GD |
Number of contact blocks per actuator | Maximum 6 contact blocks |
Mounting | Panel cut-out ? 22,5 mm |
Type of terminals | Screw terminals |
Features of the contact block | Ith = 10 A; Ui = 415 V |
Features of the contact block | AC Ue = 380 V; Ie = 1,9 A or |
DC Ue = 250 V; Ie = 0,27 A or | |
Mechanical endurance | Head: 5 million operations - Contact block: 1 million operations |
EX-TECH開關XBW系列介紹
廣泛的HarmAtex選擇器開關系列，帶有標準或長手柄或車輪手柄，結合了實施的簡單性、靈活性和穩健性。卡扣鎖頭主體和通過單個螺釘夾緊到控制板的系統，可確保輕松安全地安裝。
它們配備用于爆炸性環境氣體/蒸汽或粉塵的外殼或控制面板，以增強安全保護 (Ex e) 或加壓 (Ex p) 或外殼保護 (Ex t) 模式。
旨在涵蓋最大可能的用途，每個按鈕最多可配備6個常開或常閉觸點

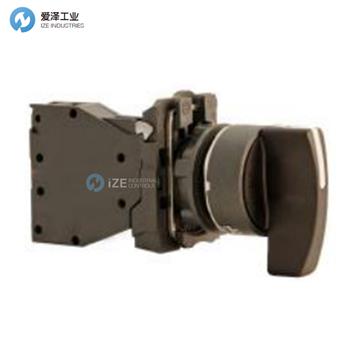

Wide HarmAtex range of selector switches with standard or long handle or wheel handle or key combines simplicity of implementation, flexibility and robustness. A system of snap-lock head-body and clamping to the control board by a single screw, ensures an easy and secure mounting..
They equip enclosures or control panels intended for explosive atmospheres gas/vapours or dust in increased safety protection (Ex e) or pressurized (Ex p) or protection by enclosure (Ex t) modes.
Designed to cover the maximum possible uses, each button can be equipped with up to 6 contacts NO or NC. T
EX-TECH開關XBW系列其他常用型號：
EX-TECH XBW5AJ21
EX-TECH XBW5AJ41
EX-TECH XBW5AJ33
EX-TECH XBW5AJ53
EX-TECH XBW5AJ73
EX-TECH XBW5AJ83
EX-TECH XBW5AD291
EX-TECH XBW5AD491
EX-TECH XBW5AD393
EX-TECH XBW5AD593
EX-TECH XBW5AD793
EX-TECH XBW5AD893
EX-TECH switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EX-TECH開關XBW5AJ53的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.jjxdch.cn.
