BLUESEA電池開關6006技術參數
Specifications | |
Switch Type | Single Circuit ON-OFF |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Stud Size | 3/8" |
Terminal Stud Torque | 120 in-lb (13.56 Nm) |
Continuous Rating | 300A |
Intermittent Rating | 500A (5 min) |
Cranking Rating 30 sec | 900A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
Mounting Holes | Accept #10 Screw |
Stud Material | Tinned Copper |
Stud Torque | 120 in-lb (13.56 Nm) |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 0.65lb (0.29 kg) |
BLUESEA電池開關6006產品介紹
m系列帶旋鈕的迷你開關電池開關 - 紅色
將單個電池切換到單個負載組
? 點火保護——可安全安裝在汽油動力船上
? 外殼設計允許表面、前面板或后面板安裝
? 帶卡扣部分的隔離蓋可保護后觸點

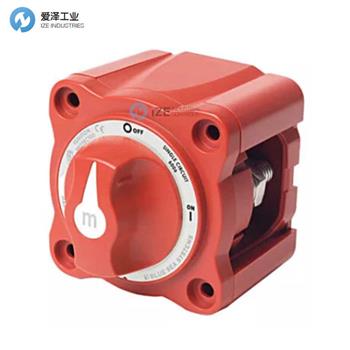

m-Series Mini On-Off Battery Switch with Knob - Red
Switches a single battery to a single load group
? Ignition protected—safe for installation aboard gasoline powered boats
? Case design allows surface, front panel, or rear panel mounting
? Isolating cover with snap-on sections protects rear contacts
BLUESEA電池開關M系列其他常用型號：
BLUESEA 6004
BLUESEA 6004200
BLUESEA 6005
BLUESEA 6005200
BLUESEA 6006
BLUESEA 6006200
BLUESEA 6007
BLUESEA 6007200
BLUESEA 6008
BLUESEA 6008200
BLUESEA 6010
BLUESEA 6010200
BLUESEA 6011
BLUESEA 6011200
BLUESEA Battery Switches NEW + ORIGINAL+ ONE YEAR WARRANTY
