3M接頭82-BF1規格介紹
Typical properties | |
Details | |
Brands | 3M |
Cable Type | multi core, non shielded, rubber insulated reeling cables |
Conductor Amount | Multiple, Single |
Conductor Sizes (Imperial) | 1/0 AWG |
Dielectric Strength (V/mil) | 343 V/mil |
Flame Retardant | Resin only |
Gel Time | 17 min 73 °F (23 °C) |
Hardness | 82 Shore A |
Indoor/Outdoor | Both |
Insulation Outside Diameter Range | 0.25 - 0.80 Inch |
Insulation Outside Diameter Range (Metric) | 6.0 - 20.0 mm |
Maximum Conductor Size (Imperial) | 1/0 AWG |
Maximum Conductor Size (Metric) | 50 mm2 |
Maximum Insulation Outer Diameter (Imperial) | 0.8 in |
Maximum Insulation Outer Diameter (Metric) | 20 mm |
Maximum Operating Voltage | 5 Kilovolt |
Minimum Conductor Size (Imperial) | 6 AWG |
Minimum Conductor Size (Metric) | 16 mm2 |
Minimum Insulation Outer Diameter (Imperial) | 0.25 in |
Minimum Insulation Outer Diameter (Metric) | 6.4 mm |
Mining Sector Approval | Yes |
Model | Cast Resin |
Product Color | Black |
Product Series | 82-B Series |
Product Type | Resin Splice |
Resin Type | SC 2131 |
Shelf Life | 36 Month |
Splice Type | Parallel Branch |
Voltage | 5 kV |
Voltage Rating | 0.6/1 kV |
With Screw Connectors | No |
3M接頭82系列特點介紹
3M? 82 F Series Resin Compression Inline Cable Splice Kit with flame retardant compound 2131, is designed for inline splicing on non shielded portable power cables and cords. The wet/dry flexible power cable splice kit is suitable for use on single and multi conductor cables, depending on the voltage rating.

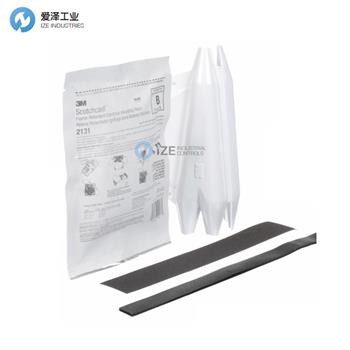

3M? 82 F Series Resin Inline Cable Splice Kit includes Scotch? rubber splicing tape 23, Scotchcast? compound 2131 and Three M Ite? Elek Tro Cut? abrasive cloth 80J grit. The semi flexible compound offers permanent splicing to bend with the cable for easy installation, reeling and handling. The smooth, tapered splice prevents cable hang ups and splice end lifting. The flame retardant compound 2131 is a self curing resin that bonds to itself and modern cable jackets. This kit is perfect for splicing 1 kV rated multiple conductors and 5 kV rated single conductors. RoHS 2011/65/EU Compliant and MSHA Approved.
3M? 82 F 系列樹脂壓縮內嵌電纜接頭套件采用阻燃化合物 2131，設計用于在非屏蔽便攜式電源電纜和電線上進行內嵌接頭。濕/干柔性電力電纜接頭套件適用于單芯和多芯電纜，具體取決于額定電壓。
3M? 82 F 系列樹脂內嵌電纜接頭套件包括 Scotch? 橡膠接頭膠帶 23、Scotchcast? 化合物 2131 和三個 M Ite? Elek Tro Cut? 砂布 80J 砂礫。半柔性復合材料提供永久拼接，可隨電纜彎曲，便于安裝、卷取和處理。光滑的錐形接頭可防止電纜掛起和接頭端部抬起。阻燃化合物 2131 是一種自固化樹脂，可與自身和現代電纜護套粘合。該套件非常適合拼接 1 kV 額定多根導線和 5 kV 額定單根導線。符合 RoHS 2011/65/EU 和 MSHA 批準。
3M接頭其他常用型號：
3M 82-F1
3M 82-F2
3M 82-BF1
3M 72-N4
3M 72-N6
3M 72-N5
3M 85-14
3M 82-A1N
3M 82-A3N
3M 852-14CPN
3M 90-B1N
3M 82-B1N
3M 82-A2N
3M 72-N1
3M joint NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于3M接頭82-BF1的疑問，請隨時與我們溝通，我們將盡全力解決您的問題。
If you have any question for 3M products, Please feel free to communicate with us and we will do our best to solve your problem.
3M接頭82-BF1技術參數及特點介紹
