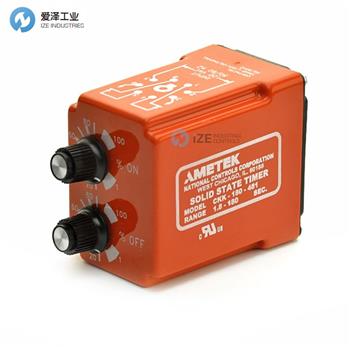

NCC繼電器CKK-180-461技術參數
SPECIFICATIONS | |
TIME DELAY | |
Adjustment: | Knobs, factory fixed on special order (min. order required) |
Range: | 50 ms to 1 hour in 8 ranges |
Repeatability: | ±1% at constant temperature |
Accuracy | Maximum time -0%, +10% |
Reset Time: | 500 ms max. |
INPUT | |
Operating Voltage: | 12, 24 VDC; 24, 120 VAC ±10% (DC models have reverse polarity protection; unfiltered input voltage to them must be fullwave rectified) |
Power Consumption: | 3 VA max. |
Frequency: | 50/60 Hz |
OUTPUT | |
Type: | Relay DPDT (2 form C) |
Rating: | 10 A max. resistive at 240 VAC; 100 mA at 5 VDC min. load current |
Life: | Mechanical: 10,000,000 operations |
PROTECTION | |
Transient Voltage: | 12 and 24 V timers are protected by an 8.8 joule metal oxide varistor 120 V timers are protected by a 30 joule metal oxide varistor |
Dielectric Breakdown: | 1500 V RMS min. at 60 Hz between input and outputs and between outputs |
MECHANICAL | |
Termination: | 8-pin plug |
Mounting: | Socket mount, part number MSO-0008P-012 |
ENVIRONMENTAL | |
Storage Temperature: | -23°C to 70°C |
Operating Temperature: | -23°C to 55°C |
NCC繼電器CKK系列介紹
DESCRIPTION
Operating Logic: Upon application of voltage to the input terminals, the OFF delay is initiated. At the end of the OFF preset time, the relay coil is activated, and the ON delay starts. At the end of the ON preset time, the relay coil is deactivated, and a new cycle begins. The ON and OFF cycles will continue to alternate until the voltage is removed.
FEATURES
100% functionally tested
Digital timing circuit
Time delays to 10 hours
±1% repeatability
Individually adjustable ON and OFF times
Fiberglass reinforced circuit board
Internal components supported by heavy-duty chassis
Reinforced base locator pin
Polycarbonate flame-retardant housing
描述
操作邏輯：在輸入端子上施加電壓后，將啟動 OFF 延遲。 在 OFF 預設時間結束時，繼電器線圈被激活，ON 延時開始。 在 ON 預設時間結束時，繼電器線圈被停用，新的循環開始。 ON 和 OFF 周期將繼續交替，直到電壓被移除。
特征
100功能測試
數字定時電路
時間延遲至10小時
±1% 重復性
可單獨調節的開啟和關閉時間
玻璃纖維增強電路板
重型底盤支撐的內部組件
加強型底座定位銷
聚碳酸酯阻燃外殼
NCC繼電器CKK系列其他常用型號：
NCC CKK-00005-461
NCC CKK-00010-461
NCC CKK-00060-461
NCC CKK-00180-461
NCC CKK-00300-461
NCC CKK-00600-461
NCC CKK-01800-461
NCC CKK-03600-461
