WEH連接器C1-14455技術參數

WEH連接器TW108 系列介紹

WEH? TW108 填充連接器是 WEH? TW110 的替代品，用于在汽車空調設備的維護工作期間進行密封填充和排空。 SAE J639。 只需推動即可連接，即可與外徑 ? 13 的珠子建立壓力密封連接。

TW108 服務連接器的額定最大電流為 工作壓力為 35 bar，具有用于車輛高壓連接端口的紅色編碼滑動套筒和內聯介質入口 UNF 7/16“-20 外螺紋 (SAE J513-45°)。

集成且經過流量優化的截止閥可防止殘留在填充管中的制冷劑逸出，然后可以正確處理。 連接和斷開是通過滑動套筒的簡單移動來實現的。 從而消除了因連續擰緊和旋松螺紋接頭而引起的肌腱炎癥和關節磨損的 RSI。 與傳統的螺紋連接器相比，TW108 操作簡便，可節省成本和時間。

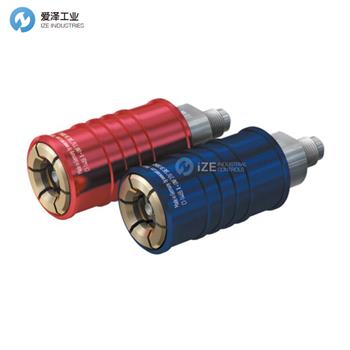

The WEH? TW108 Filling Connector is a good reasonably priced alternative to the WEH? TW110 for leak-tight filling and evacuating during maintenance work of automotive air conditioning equipment acc. to SAE J639. Just push to connect and the pressure-tight connection to the external diameter ? 13 of beads is established.

The TW108 service connector is rated for a max. operating pressure of 35 bar and has a colour coded sliding sleeve red for the vehicle’s high pressure connection port and an inline media inlet UNF 7/16“-20 male thread (SAE J513-45°).

The integrated and flow-optimized shut-off valve prevents the escape of refrigerant which remains in the filling tube and can then be correctly disposed of. Connection and disconnection is effected by a simple movement of the sliding sleeve. RSI resulting in the inflammation of tendons and abrasion of joints caused by continuous screwing and unscrewing of threaded joints is thus eliminated. Compared to conventional screwed connectors, the TW108 features ease of operation saving costs and time.

WEH連接器TW108系列其他常用型號：

WEH C1-14458

WEH C1-14455

WEH C1-14458/1

WEH C1-14455/1

WEH Connector NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于WEH連接器C1-14455的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for WEH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.

WEH連接器TW108系列C1-14455技術參數及介紹
