BIJUR潤滑器FZA系列技術參數
Technical Data | |
Reservoir Capacity | 8 liter (16.5 lb) – Additional sizes available upon request. |
Permissible Lubricants | Suitable for oil and grease up to NLGI grade 000-2 |
Number of Outlets (Optional) | 1 to 12 |
Maximum Permissible Feed Pressure | 2900 psi (200 bar) |
Maximum Permissible Piston Speed | 6 rpm (with ratchet drive) |
Delivery Volume Per Outlet for One Rotation of Piston Plunger | 0 to 0.1cc (0 to 0.006 cu. in.) Adjustable |
Maximum Delivery Volume Per Outlet Per Hour | 60cc (3.66 cu.in.) |
Operating Temperature | -4?F to 176?F (-20?C to 80?C) |
Outlet Thread Connection | 1/4” BSPP |
Drive Type and Transmission Ratios | Ratchet: 3:1, 12:1, 25:1, 50:1 |
Filler Valve | Optional (Fill the grease reservoir by means of a forced-fed barrel pump.) |
Low Level Switch (Optional) | Ultrasonic |
BIJUR潤滑器FZA系列介紹
FZ-A 潤滑器主要用于直接供油應用，至多可服務 12 個潤滑點。潤滑器配有泵體，泵體由單排出口（1-6）或雙排出口（1-12）組成。每個出口或每組出口的排量可通過位于泵體頂部的調節主軸進行調節。通過在潤滑器下游安裝漸進式分配器，可服務 12 個以上的潤滑點。FZ-A 潤滑器通常由法蘭安裝電機驅動，或通過棘輪或旋轉驅動器通過潤滑機器驅動?；钊淖畲笤试S速度為旋轉驅動潤滑器的 10 rpm 和棘輪驅動的 6 rpm。提供多種傳動比，使該潤滑器能夠適應各種機器要求。
? 堅固耐用的組件，適用于惡劣和嚴苛的應用
? 油脂攪拌器和儲油槽楔板確保將油脂輸送到活塞腔
? 適應需要潤滑的機器的各種驅動速度，無需額外的控制系統
? 利用超聲波高/低液位開關和填充口連接實現自動補給功能
? 適用于漸進式系統和齒輪噴霧系統

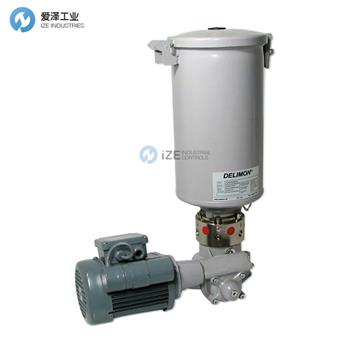

The FZ-A Lubricator is primarily designed for direct feed applications for servicing up to 12 lubrication points. The lubricators are supplied with pump bodies comprising either a single row of outlets (1-6) or a double row of outlets (1-12). Discharge is adjustable for each outlet or set of outlets via adjusting spindles located at the top of the pump body. Service to more than 12 lubrication points can be accomplished by installing progressive dividers downstream of the lubricator. FZ-A lubricators are typically driven by a flange mounted motor or via the machine being lubricated through either a ratchet or rotary drive. Maximum permissible speed of the piston plunger is 10 rpm for rotary drive lubricators and 6 rpm for ratchet drive. A wide range of transmission ratios are available making this lubricator adaptable to meet a diversity of machine requirements.
? Robust components for harsh and severe applications
? Grease agitator and reservoir wedge plate assures delivery of grease to piston chamber
? Adaptability to various drive speeds of the machine to be lubricated, eliminating the need for additional control systems
? Automatic refill capabilities utilizing ultrasonic high/low level switch and fill port connection
? Adaptable to progressive systems and gear spray systems
BIJUR潤滑器FZA系列其他常用型號：
BIJUR FZA1A14AL17
BIJUR FZA1A23AL17
BIJUR FZA1A29AA59X01
BIJUR FZA2A23AL17
BIJUR FZA3A23AL17
BIJUR FZA4A23AL17
BIJUR FZA6A29AA00
BIJUR FZA01A23AL17
BIJUR FZA02A23AL17
BIJUR FZA04A23AL17
BIJUR LUBRICATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BIJUR潤滑器FZA01A23AL17的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BIJUR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
BIJUR潤滑器FZA系列FZA01A23AL17技術參數及介紹
