TRIBOTEC分配器DLDF系列規格
Technical details | |
Lubricant | oil, grease |
Maximum output | DLDF 1,5 cm3/stroke |
Output adjustment | 0–100 % |
Maximum pressure | 400 bar |
Number of outlets | DLDF 1–8 |
Inlet fittings | G3/8″ |
Outlet fittings | G1/4″ |
TRIBOTEC分配器DLDF系列介紹

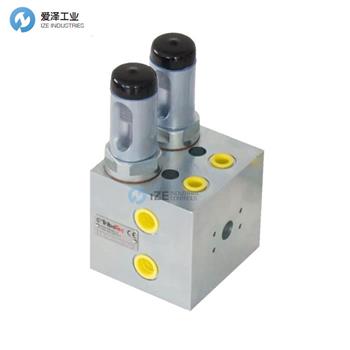

雙線分配器 DLDF, DLDH
DLDF 和 DLDH 型雙線分配器模塊具有很高的抗機械損傷能力，適合嚴苛的工作條件。DLDF 分配器有兩個產品系列可選?；A(chǔ)系列是 DLDF 系列分配器，具有潤滑劑劑量的連續調節功能，通過信號針進行操作信號顯示。通過封閉一個對向出口并取出其分配螺釘，可以將劑量加倍，通過使用連接橋可以進一步倍增潤滑劑的劑量。另一個產品系列是 DLDF-P 分配器，沒有調節頭，具有固定的最大潤滑劑劑量，可通過更換插頭進行更改。DLDH 分配器配備了連續調節潤滑劑劑量和通過信號針的操作信號顯示，提供 1-4 個出口數量可選。
Two-line distributor DLDF, DLDH
Block two-line distributors DLDF and DLDH are highly resistant to mechanical damage, suitable for severe working conditions. The distributors DLDF are available in a two product series. The basic one is distributors of DLDF series with continuous adjustment of lubricant dose and operation signalling by mean of signalling pin. The dose can be doubled by plugging one of the opposite outlets and taking out its distribution screw, multiplication of lubricant dose from outlet is possible by using of connecting bridges. Another product series are represented by DLDF-P distributors without adjustment head, with fixed maximal lubricant dose, that can be changed by exchangeable plugs. DLDH distributors are supplied with continuous adjustment of lubricant dose and operation signalling by mean of signalling pin, with number of outlets 1 – 4.
TRIBOTEC分配器DLDF系列其他常用型號：
TRIBOTEC DLDF-P 2-2 952 0676
TRIBOTEC DLDF-P 4-4 952 0677
TRIBOTEC DLDF-P 6-6 952 0678
TRIBOTEC DLDF-P 8-8 952 0679
TRIBOTEC DLDF-P 2-1 952 0690
TRIBOTEC DLDF-P 4-3 952 0691
TRIBOTEC DLDF-P 6-5 952 0692
TRIBOTEC DLDF-P 8-7 952 0693
TRIBOTEC Allocator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRIBOTEC分配器DLDF 8-8的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRIBOTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.jjxdch.cn.
TRIBOTEC分配器DLDF系列DLDF 8-8介紹
