VOGEL泵MFE系列技術參數
Function principle | Electrically operated gear pump |
Number of outlets | 1 |
Metering quantity-metric | 250-500 cm3/min |
Material (reservoir) | plastic, metal |
Lubricant | mineral oil or synthetic oil, 20 to 850 mm2/s fluid grease NLGI 000 or 00 |
Connection outlet | M 14x1.5 |
Operating pressure – Metric | max. 17,5; 28 bar |
Operating temperature Celcius | -10 to +60 °C |
Reservoir capacity-metric | 3; 6 or 15 l |
Dimensions Metric | 3 l; 0.8 gal plastic: 303 × 130 × 245 mm; 3 l; 0.8 gal metal: 332 × 178 × 312 mm |
6 l; 1.5 gal plastic: 319 × 128 × 265 mm; 6 l; 1.5 gal metal: 370 × 167 × 330 mm | |
15 l; 4 gal metal: 453 × 200 × 436 mm | |
Mounting position on machines | vertical |
VOGEL泵MFE系列產品描述
MFE系列齒輪泵單元專為間歇運行的單線潤滑系統提供潤滑劑而設計。基本配置包括一個帶電機的齒輪泵單元、一個3升或6升的金屬或塑料材質潤滑劑儲液罐，或一個15升的金屬儲液罐。浮動開關可用于監控最低允許潤滑劑液位。除基本型號外，該系列單元還可配備附加組件。

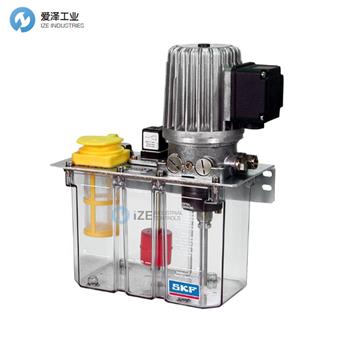

The gear pump units comprising the MFE series are designed to supply lubricant used in intermittently operated, single-line lubrication systems. The basic setup includes a gear pump unit with motor, a 3- or 6 l lubricant reservoir in metal or plastic, or a 15 l metal reservoir. A float switch can be used to monitor the minimum permissible level of lubricant. In addition to the basic models, units can be outfitted with add-ons.
VOGEL泵MFE系列其他常用型號：
VOGEL MFE2-BW3-2+299
VOGEL MFE2-BW3F-2+299
VOGEL MFE2-BW7+299
VOGEL MFE2-BW7F-S1+140
VOGEL MFE2-KW3-2+299
VOGEL MFE2-KW3-S1+1FV
VOGEL MFE2-KW3-S2+299
VOGEL MFE2-KW3F-2+299
VOGEL MFE2-KW3F-S13+1FV
VOGEL MFE5-KW3-2+299
VOGEL pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VOGEL泵MFE5-KW3-2+299 的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VOGEL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
VOGEL泵MFE系列MFE5-KW3-2+299技術參數
