ILC潤滑泵CME系列技術參數
Technical data | |
Reservoir capacity | 2l - 3l |
Capacities measured | 100cc/1' 50Hz |
Outlet connections | 2 BSP 1/4” seats (standard supplied with 1 left-hand lock cap) |
Electrical connections | 1 cable gland for power supply |
Filling | Cap with 200 μ load filter |
Pressure gauge | 0 - 60 bar |
Operating pressure | 24-30 bar |
Lubricants | Oils 50 to 1000 cSt |
Operating temperature | 0°C - 50°C |
Protection rating | IP-54 |
Weight (reservoir empty) | 3.5 Kg (2l) |
ILC潤滑泵CME系列介紹
CME 電動泵專為配備有容積計量閥或氣油混合器的單線潤滑系統而開發。
該裝置由齒輪泵、電動機、低液位開關、電子控制卡（可根據要求提供）、綠色LED指示燈（指示電源開啟）、黃色LED指示燈（指示泵工作）、壓力表、中間潤滑按鈕和壓力開關組成。壓力開關也可安裝在主油路末端。
塑料蓋可保護電子元件免受污垢或灰塵等環境因素的影響。透明的耐沖擊儲液器容量為 2 升或 3 升。
一組提供減壓和旁通功能的閥門與齒輪泵相連。
可使用的潤滑劑為粘度范圍在 50 至 1000 cSt 之間的潤滑油 (CME-O) 或 NLGI 稠度為 000-00 的軟脂 (CME-G)。兩種型號配備不同的液位控制傳感器。

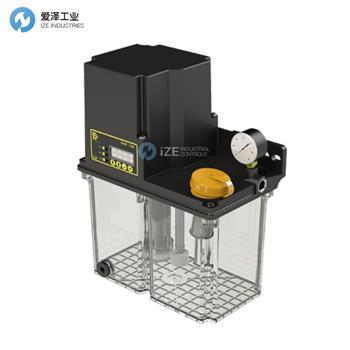

CME electric pumps have been developed for single line lubrication systems fitted with volumetric metering valves or air-oil mixers.
The unit consists of a gear pump, an electric motor, a low level switch, an electronic control card (upon request), a green LED (indicates power ON), a yellow LED (indicates pump working), a pressure gauge, a push button for intermediate lubrication and a pressure switch. Alternatively, the pressure switch can also be put at the end of the main line.
The plastic cover protects the electrical components from environmental conditions like dirt or dust. The transparent impact-resistant reservoir has a capacity of 2 or 3 litres.
A set of valves which provides the decompression and bypass functions is connected to the gear pump.
The lubricants that can be used are oil with a viscosity range between 50 and 1000 cSt (CME-O) or soft grease with a NLGI consistency of 000-00 (CME-G). The two models have different sensors fitted for level control.

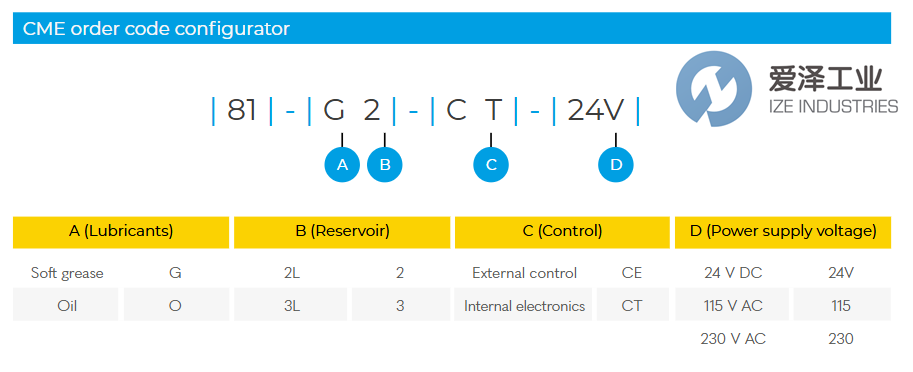

ILC潤滑泵CME系列選型
ILC潤滑泵CME系列其他常用型號：
ILC 81.Z03361.001
ILC 81-G2-CE-115
ILC 81-G2-CE-230
ILC 81-G2-CE-24V
ILC 81-G2-CT-115
ILC 81-G2-CT-230
ILC 81-G2-CT-24V
ILC 81-G3-CE-24V
ILC 81-O2-CE-115
ILC 81-O2-CT-230
ILC 81-O3-CE-24V
ILC 81-O3-CE-115
ILC 81-O2-CE-24V
ILC 81-G3-CT-230
ILC 81-O2-CE-230
ILC pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ILC潤滑泵81.Z03361.001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ILC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.jjxdch.cn.
