PSI鈦棒QUIK TITANIUM技術參數
Properties | Results | Test Methods |
Uncured Properties | ||
Work life at 75?F (24?C) | 1.5 to 2 hours | |
Non-volatile content | >99% | |
Density | 16.5 lb/gl (1.90 g/cm3 ) | |
Functional cure | ||
(lap shear tensile strength=200 psi) | 8 hours | |
Cure time to full cure at 70?F (21?C) | 3 days | |
Cured Mechanical Properties | ||
Shore D hardness | ||
at 75?F (24?C) | 80 | ASTM D2240 |
at 500?F (260?C) | 48 | |
Lap shear tensile strength (steel to steel) | ||
Cured at 75?F (24?C) for 24 hrs | 250 lbs (2 MPa) | ASTM D1002 |
Cured at 150?F (65?C) for 24 hrs | 750 lbs (5 MPa) | |
High-temperature lap shear strength (steel to steel) | ||
Cured at 75?F (24?C) for 24 hrs + | ||
500?F (260?C) for 1 hr. | 250 lbs (2 MPa) | ASTM D1002 |
Compressive strength | 8,000 psi (55 MPa) | ASTM D695 |
Shrinkage | <1% | ASTM D2566 |
High-temperature weight loss (24 hours) | <1% at 400?F (204?C) <2% at 500?F (260?C) | |
Tg by DSC | 134?F (57?C) | |
Temperature limits | ||
Continuous | -40 to +450?F (-40 to +232?C) | |
Intermittent | -40 to +500?F (-40 to +260?C) | |
Chemical resistance | Resistant to hydrocarbons, ketones, esters, alcohols, halocarbons, aqueous salt solutions, and dilute acids and bases | |
Cured Electrical Properties | ||
Electrical resistance | 30,000 megohms-cm | ASTM D257 |
Dielectric strength | 300 volts/mil | ASTM D149 |
PSI鈦棒介紹

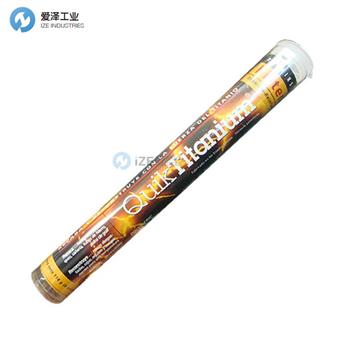

QuikTitanium Epoxy Putty Stick is a hand-kneadable, titanium-reinforced, epoxy putty adhesive sealant for high-temperature applications. It is designed to bond and repair materials that will be exposed to high temperatures for use in a variety of industrial maintenance applications. It comes in a handy "Tootsie-roll?" form with the curing agent encapsulated in the contrasting color base material. Just cut off a piece, mix with gloved fingers to a uniform color and apply.
Benefits:
Will not shrink or pull away.
Service temperature -40 to 500o F (-40 to 260o C)
Putty-like consistency eliminates drips and runs for a "no mess" application.
No tools required for use.
After 8 hours at room temperature can be drilled, tapped and sanded.
Typical applications:
Repair iron pipes and tanks.
Fill blowholes.
Form molds, patterns and castings.
Repair stripped threads, tools and equipment.
QuikTitanium鈦棒膠棒是一種可手動捏合的鈦增強鈦棒膠密封劑，適用于高溫應用。 它旨在粘合和修復將暴露于高溫的材料，以用于各種工業維護應用。 它采用方便的“Tootsie-roll?”形式，固化劑封裝在對比色的基礎材料中。 只需切下一塊，用戴手套的手指混合至均勻的顏色并涂抹即可。
優點：
不會收縮或拉開。
使用溫度-40至260oC（-40至500oF）
像油灰一樣的稠度可消除滴落現象，并適用于“無亂糟糟”的應用。
無需使用任何工具。
在室溫下8小時后，可以進行鉆孔，攻絲和打磨。
典型應用：
修理鐵管和水箱。
填充氣孔。
成型模具，圖案和鑄件。
修理剝線，工具和設備。
PSI鈦棒其他常用型號：
PSI AquaMend
PSI FastSteel
PSI InstaCrete
PSI QuikAluminum
PSI QuikCopper
PSI QuikPlastik
PSI QuikTitanium
PSI QuikWood
PSI RepairitQuik
